Home /Products/Rotary Die Cutting Machine/Upgrade Die Cutting Process Flexo Unit Intermittent Die Cutter Machine 0.15mm Accuracy 800mm Max Unwinding Dia

Upgrade Die Cutting Process Flexo Unit Intermittent Die Cutter Machine 0.15mm Accuracy 800mm Max Unwinding Dia

1
MOQ
9000-95000USD
Price
Upgrade Die Cutting Process Flexo Unit Intermittent Die Cutter Machine 0.15mm Accuracy 800mm Max Unwinding Dia
Features Gallery Product Description Request A Quote
Features
Specifications
Max Effective Paper Width: 370MM
Max Unwinding Dia: 800mm
Max Rewindinng Dia: 800mm
Registration: Sensor
Die Cutting Speed: 120m/min
Accuracy Of Die Cut: +0.15mm
Highlight:

0.15mm Intermittent Die Cutter

,

Die Cutter Intermittent
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE
Certification: CE
Model Number: SR-370
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

Flexo Unit Intermittent Die Cutter Machine



TECHNICAL SPECIFICATION:

Model ZMQ -370
Max effective paper width 370MM
Max unwinding dia 800mm
Max rewindinng dia 800mm
Registration Sensor
Die cutting speed 120m/min
Slitting speed 200m/min
Air supply 0.4-0.6pa
Heat temperature 0-200 degree
Accuracy of die cut +0.15mm



DEATILS DESCRIPTION

●unwinding
Description Note Quantity Brand Name
Servo driver 2KW 1 Panasonic -Japan
Web guide   1 BST----- Germany

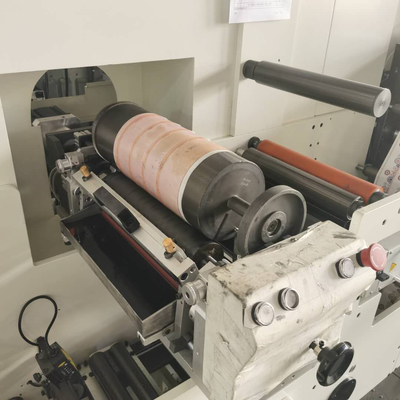

●semi rotary & rotary flexo unit
Note
Description Note Quantity Brand Name
Front feeding servo motor 2KW 1 Panasonic-----Japan
Front feeding speed reducer 115Series 1 SHIMPO-----Japan
Swing link servo motor 4 KW 1 Panasonic-----Japan
Swing link speed link 115Series 1 SHIMPO-----Japan
UV light uv dryer   1 UVlight ----- Taiwan
Mark sensor R58E 1 Banner ---USA
Flexo print servo motor 2KW 1 Panasonic-----Japan
Flexo print speed reducer 115Series 1 SHIMPO-----Japan
Air cylinder     Airtac ----Taiwan
Bearing     NSK----Japan
●rewinding system
Description Note Quantity Brand Name
Upon side Rewinding shaft 2KW 1 Panasonic-----Japan
Down side rewinding shaft 2KW 1 Panasonic-----Japan
Waste collection tension control FL12B-1 1 Shengda----China
Waste collection magnetic powder FL12B-1 1 Shengda----China
Snowball-waste collection motor 750W 1 JSCC----China
Fan 750W
Bearing     NSK

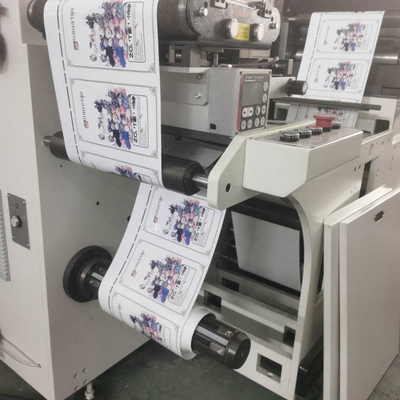

The photo is flexo unit+ intermittent die cutter+ slitting unit for reference

Upgrade Die Cutting Process Flexo Unit Intermittent Die Cutter Machine 0.15mm Accuracy 800mm Max Unwinding Dia 0

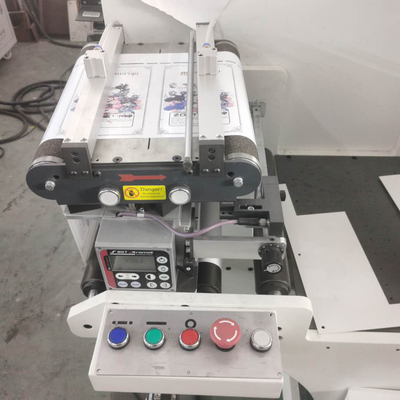

This photo is : corona treatment+ 2 unit intermittent flexo unit + intermittent cold foil + turn bar+ intermittent die cutter+ sheeter

Upgrade Die Cutting Process Flexo Unit Intermittent Die Cutter Machine 0.15mm Accuracy 800mm Max Unwinding Dia 1
