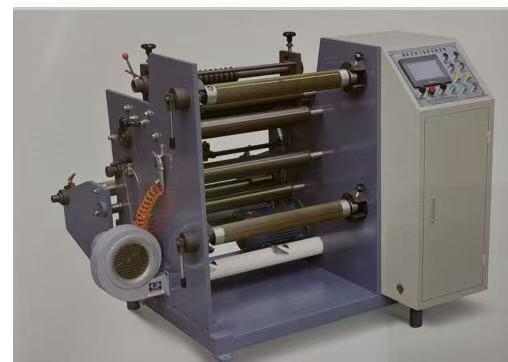

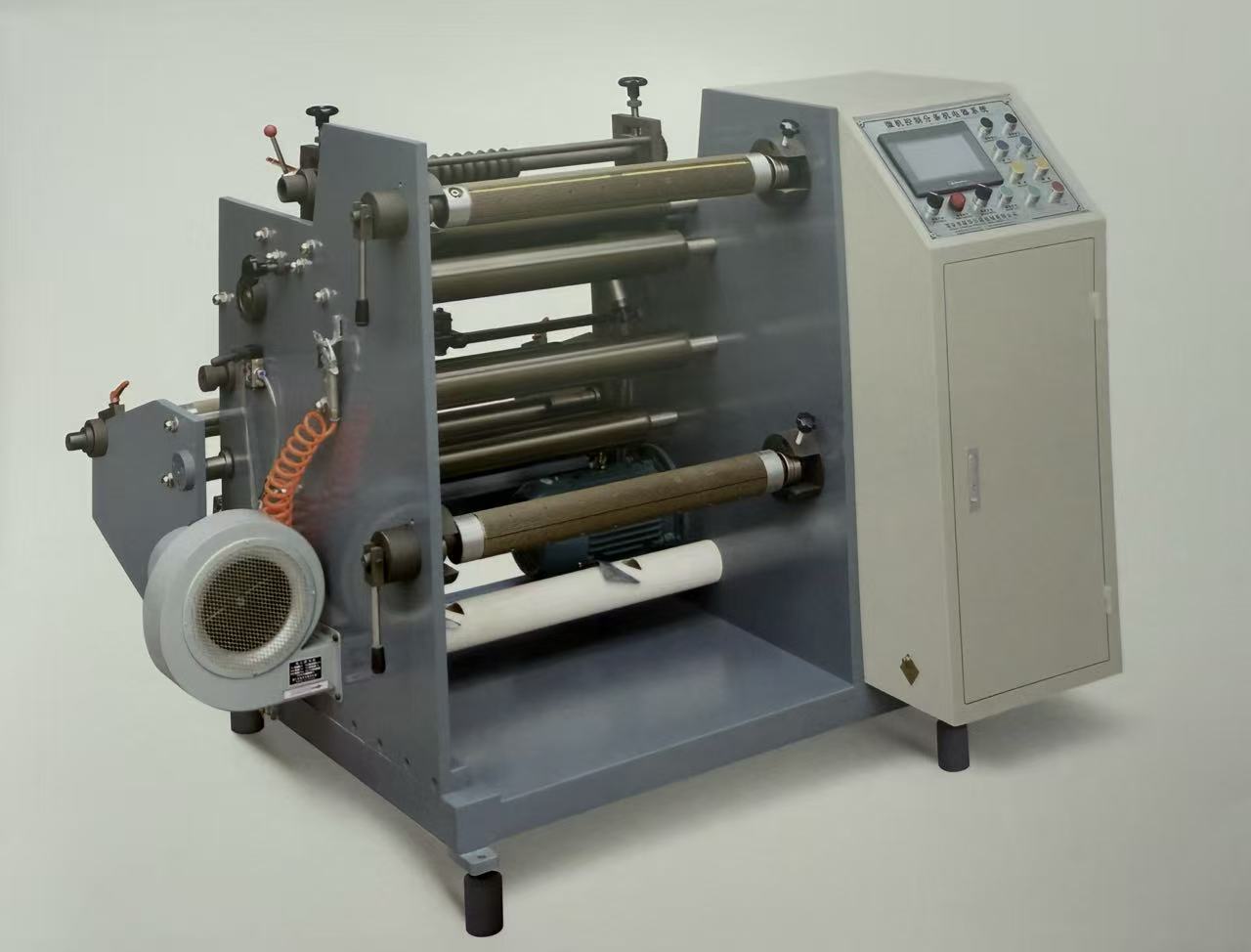

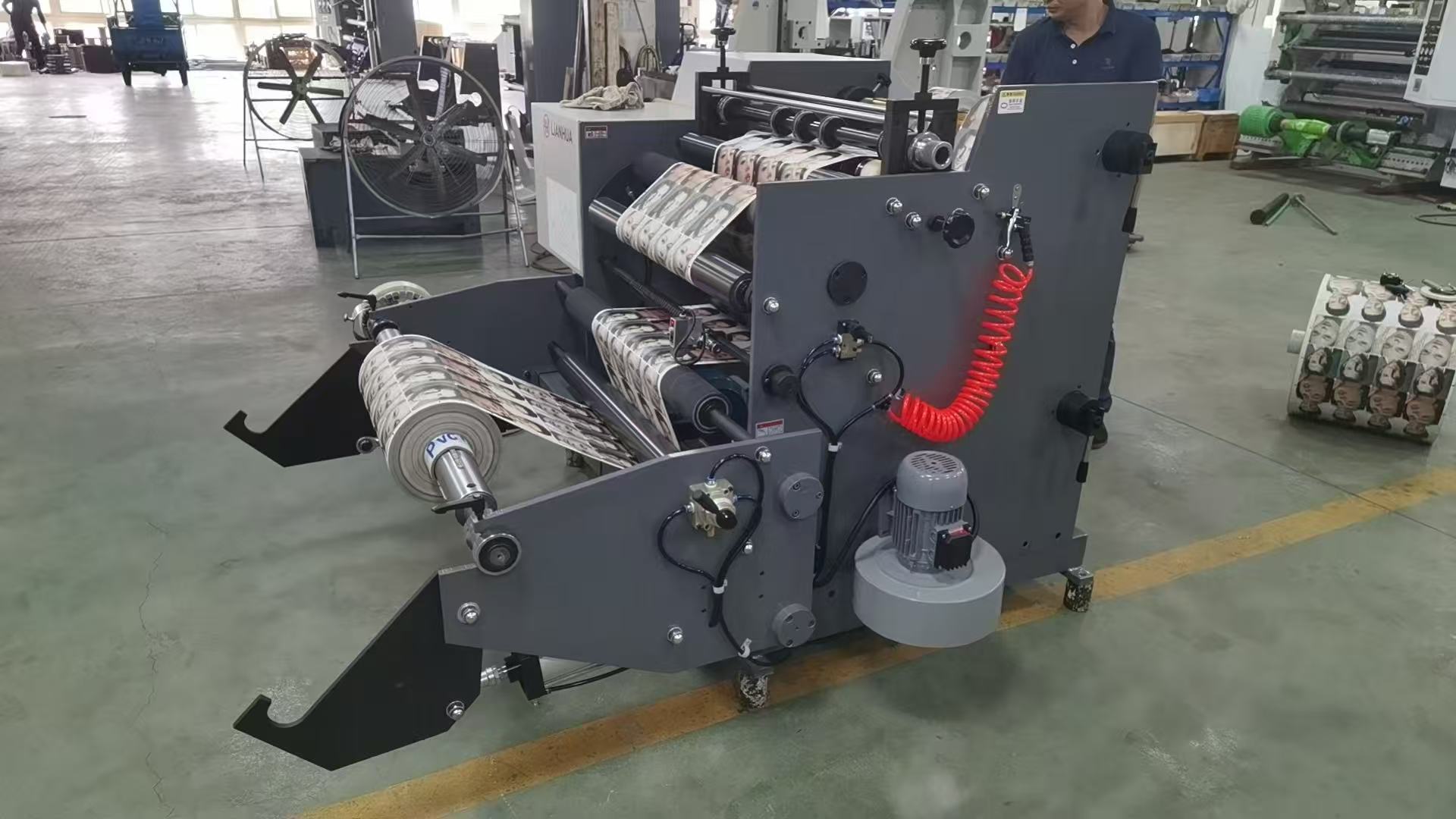

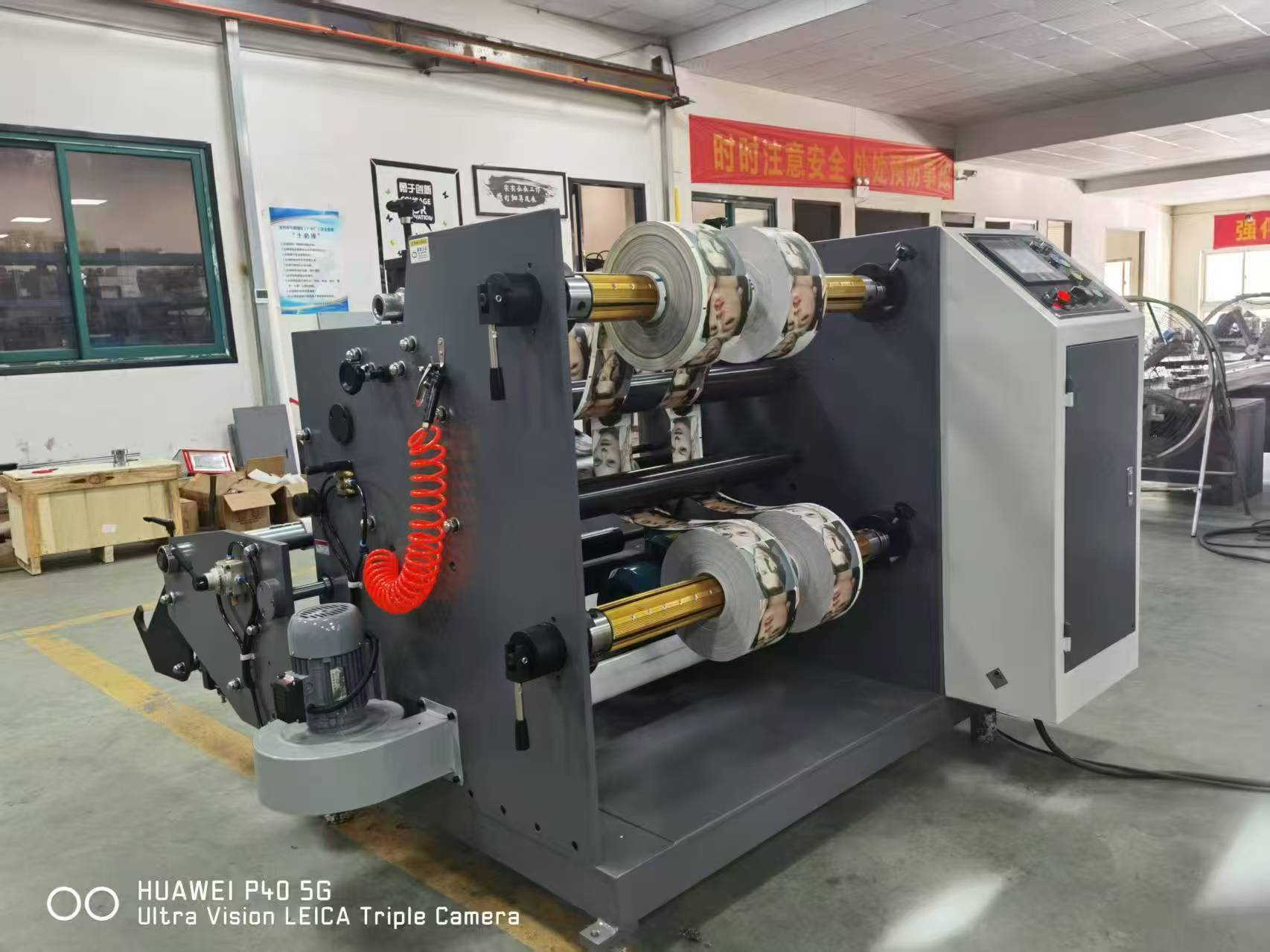

HJFQ-600 Auto slitting and rewinding machine

HJFQ-600 Auto slitting and rewinding machine

echnical Variables:

-Max web width: 600mm

- Max. rewinding diameter: φ500mm

- Max unwind diameter: φ800mm

- Min. slitting width: 25mm

- Power voltage: 380V

- Cutting precision: 0.3mm

- Total power: 3.5kw

- Slitting speed: 5-180m/min

- Cutting type(size): 1800 × 1600 × 1400mm

- Machine weight: 700kg

Main technical parameters and configuration:

1. Main motor: 2.2 KW, Shanghai Painier 4 KW frequency converter.

• Main computer board electrical appliances: standard computer control technology (PLC+touch screen), tension adopts automatic taper tension. The edge correction machine is equipped with a standard photoelectric edge correction device and one photoelectric device.

3. Whole machine transmission mode: synchronous belt synchronous wheel transmission

4. Material receiving shaft: 2 3-inch inflatable shafts each, with a maximum diameter of 500 mm for the material receiving paper roll.

5. Material release shaft: 1 3-inch key bar shaft, with a maximum diameter of 600mm for unwinding materials.

6. The unwinding material adopts a pneumatic automatic lifting system with a maximum weight of 300kg.

7. Magnetic powder brake: 60 N.m. 1, produced domestically.

8. Magnetic powder clutch: 50 N.m.2 only produced domestically.

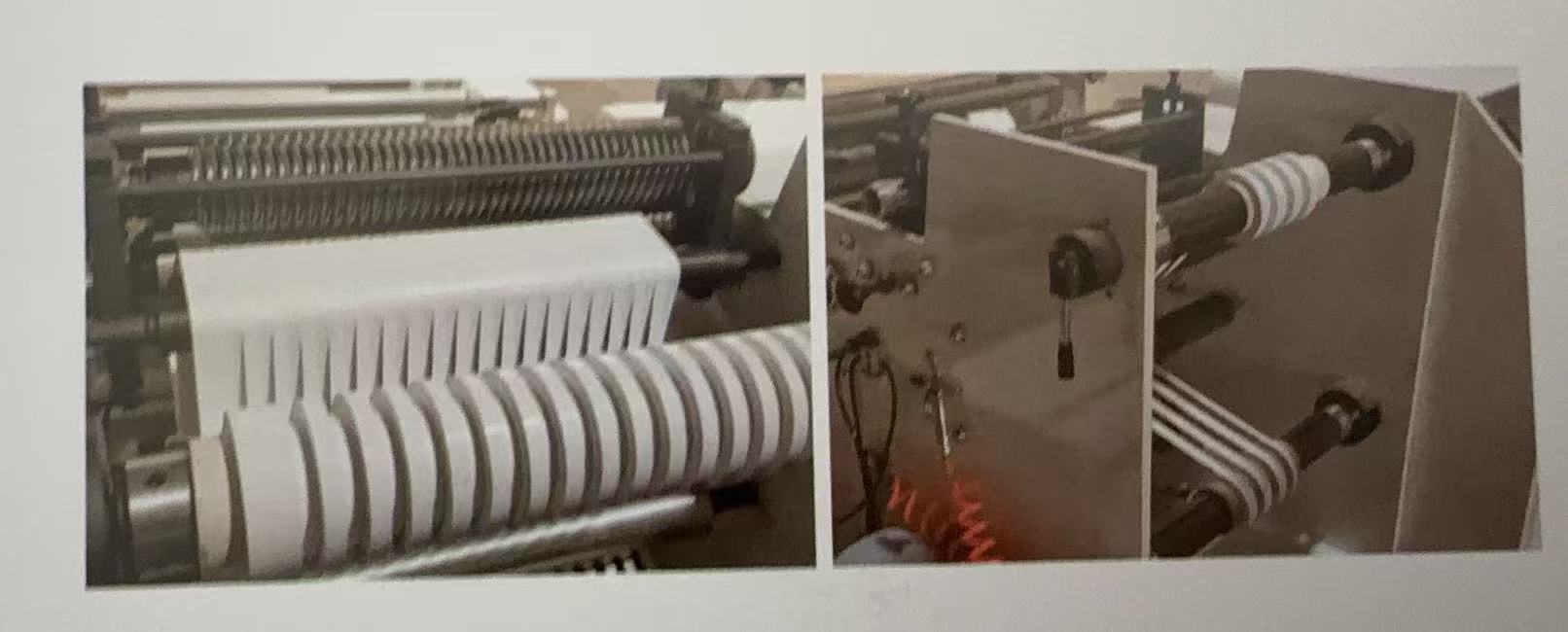

9. Cutting method: Round knife Straight knife cutting: 8 sets of standard 25mm each

Other matters: Use domestically produced Chint electrical appliances for the main electrical appliances

Note: 1. The main body is made of Q345 cast plate (16mm thickness) and is precision machined and synthesized by computer numerical control,

2: The rubber roller core adopts aluminum rollers, and the rubber roller surface adopts static parallel debugging.

3: The guide rollers are made of aluminum rollers with the same precision machining, static parallel debugging and synthesis inside and outside The surface of the guide roller is treated with hard oxidation, making it smoother and more stable, and achieving higher precision during cutting.
