Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330

1
MOQ
$60,000.00-45,000.00/sets >=1 sets
Price
Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330
Features Gallery Product Description Request A Quote
Features
Specifications
Processing Type: Paper Slitting And Rewinding Machine
Power: 8kw
Dimension(L*W*H): 1450*3000*1700MM
Weight: 2000 Kg
Video Outgoing-inspection: Provided
Model: SR-HQJ-330
Max. Rewinding Dia: 350mm
Max.Web Width: 330mm
Min.Slitting Width: 40mm
Power Voltage: 3 P 380V,50HZ
Air Supply: 0.8PA
Highlight:

330 Label Slitting Machine

,

Automatic Turret Label Slitting Machine

,

Rotary Die Cutting Label Slitting Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE
Model Number: SR-HQJ-330
Payment & Shipping Terms
Packaging Details: exported wooden case
Supply Ability: 30 Set/Sets per Month
Product Description



Automatic Turret Label Slitting And Rewinding Machine With Rotary Die-Cutting 330  China Price




Performance:
1. The rewinder can be connected with printing presses, die cutters, slitting machines and other equipment, from paper tube loading to rewinding, and then to unloading.
2. Equipped with inflatable shaft storage point: the inflatable shaft can be exchanged conveniently. The air expansion shafts are 1 inch, 1.5 inches, and 3 inches.
3. Change the size of different rolls, no manual mechanical adjustment is required, and the touch screen of different sizes can be adjusted automatically .
4. Paper tube vibration plate: It can effectively reduce labor intensity, improve efficiency, and realize intelligent production.

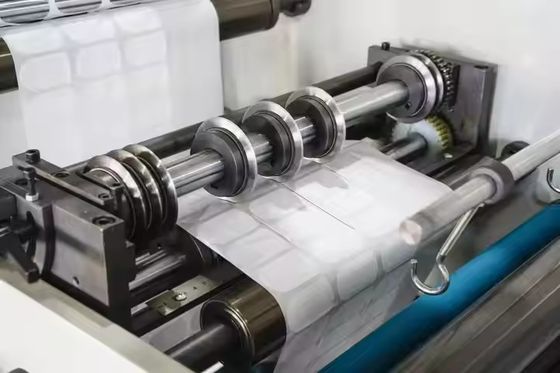

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 0

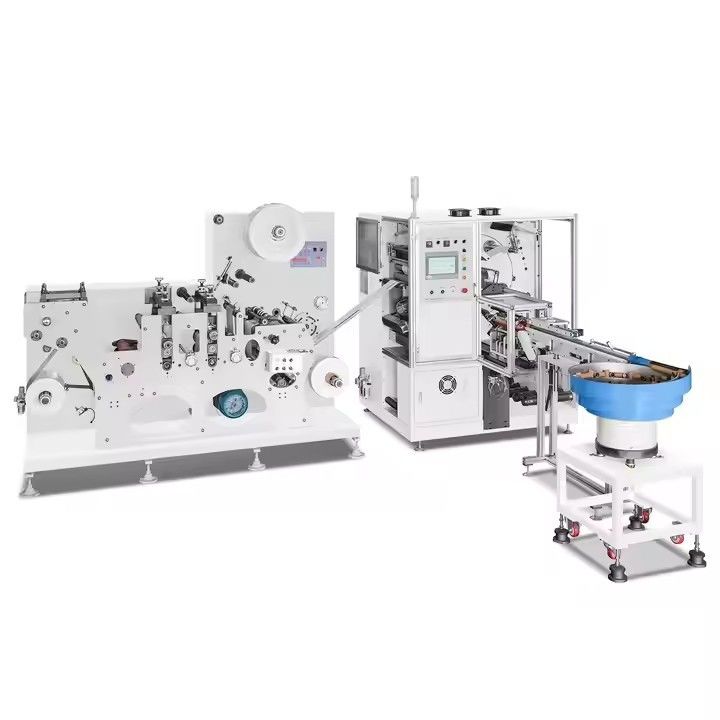

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 1

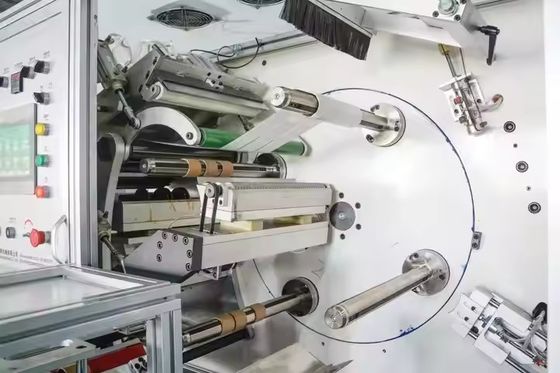

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 2

Specification



Type
330 Type
380 Type
570 Type
Max. Rewinding Dia.
350mm
350mm
350mm
Max.Web width
330mm
380mm
540mm
Min.Slitting width
40mm
60mm
100mm
Total Power
8kw
10kw
12kw
Power Voltage
3 P 380V,50HZ
3 P 380V,50HZ
3 P 380V,50HZ
Weight
About 2000 Kg
About 2100 Kg
About 2200 Kg
Overall Dimensions(LxWxH)
1450*3000*1700MM
1450*3200*1700MM
1450*3500*1700MM
Air supply
0.8PA
0.8PA
0.8PA

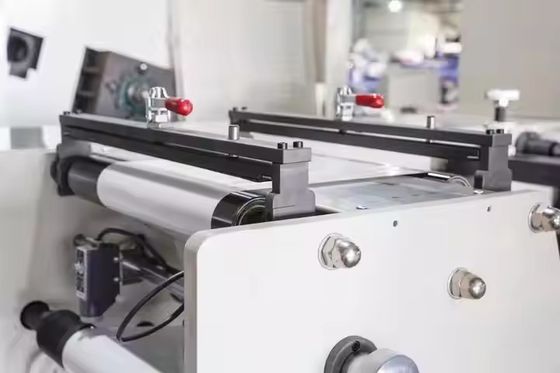

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 3

Paper tube vibration plate: It can effectively reduce labor intensity, improve efficiency, and realize intelligent production



Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 4

Automatic paper tube feeding device: No need for manual mechanical adjustment, improving efficiency.



Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 5

Inflatable shaft storage point: The inflatable rod is easy to replace. The air expansion shafts are 1 inch, 1.5 inch and 3 inch.



Packing & Delivery

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 6
Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 7
exported wooden case

Company Profile

Automatic Turret Label Slitting And Rewinding Machine With Rotary Die Cutting 330 8



Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be brave aggressive pragmatic efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise  Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
