Home /Products/Label Die Cutting Machine/SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine)

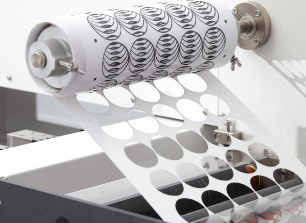

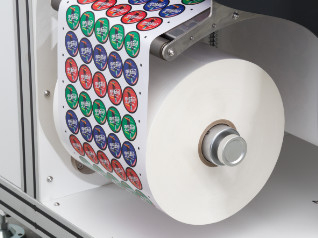

SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine)

1 set
MOQ
SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine)
Features Gallery Product Description Request A Quote
Features
Specifications
Cut Speed: 9m Per Minute (4*15cm)
Label Width: 10-330mm
Media Width: 100-350mm
Cut Precision: 0.1mm (duplicate)
Media Thickness: 60-400um
Max. Roll Diameter: 500mm
Machine Dimension: 1540*1005*1636mm
Machine Weight: Approx. 870kgs
Power Supply: 220VAC 2000W
Highlight:

high-speed label die cutter

,

intelligent digital label cutting machine

,

M4 label die cutter with warranty
Basic Infomation
Place of Origin: ZHEJIANG CHINA
Brand Name: SUNRISE
Certification: CE
Model Number: 350
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 20 days
Payment Terms: L/C
Supply Ability: USD20000usd /set EXW
Product Description
Subject: Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER

Machine   Hightlights
SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 0   →Fast and high precision with Clutch

  →Integrate lamination,die-cutter,waste removal,slitter and rewinder together

  →Dual head design automatically adjusts and distributes

  →CCD camera scan eye mark and digits to automatic switch file

  →automatic access to cut files

  → Intelligent cutting with trajectory optimization

  →Cutting speed is up to 9m/m

Key specifications   Machine features
Technology Blade dropping mode Cluth   4 cutting head Standard (Max. 4 heads)
Cut speed 9m per minute (4*15cm)   5 slitter unit Standard (Max. 15 slitter)
Label width 10-330mm   Inline web guide Standard
Media width 100-350mm   lamination Standard
Cut precision 0.1mm (duplicate)   film liner removal option
Media thickness 60-400um   waste removal Standard
Max. roll diameter 500mm   sheet cutter option
Machine dimension 1540*1005*1636mm
Machine weight Approx. 870kgs
Power supply 220VAC 2000W

Packing details   Terms
Box dimension 1680*1200*1700mm   Price term EXW
Box weight Approx. 970kgs   Payment term 30% for order, 70% before shipment
Box materials Wooden   Delivery time 35days
  SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 1         Warranty 12months

SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 2SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 3SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 4SR-Cut M4 INTELLIGENT DIGITAL LABEL DIE CUTTER ( High-Speed Label Die Cutting Machine) 5
