| Place of Origin: | Zhejiang, China |
| Brand Name: | SUNRISE |
| Model Number: | SR-C320 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $13,000.00/sets >=1 sets |
| Packaging Details: | exported wooden case |
| Supply Ability: | 30 Set/Sets per Month |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, India, Mexico, Russia, Spain, Thailand, South Korea, South Africa, Japan, Malaysia, Australia, Morocco | Condition: | New |
|---|---|---|---|
| Voltage: | 220/380V | Dimension(L*W*H): | 1750*1050*1680mm |
| Weight: | 650kg | Warranty: | 1.5 Years |
| Key Selling Points: | Automatic | Max. Workable Width: | 420mm |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1.5 Years |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Engine, Other | PLC Brand: | Schneider, Siemens |
| Model: | SR-C320 | Position Accuracy: | ±0.5mm |
| Uniwinding/Rewinding Diameter: | 500mm | Port: | Ningbo/Shanghai |

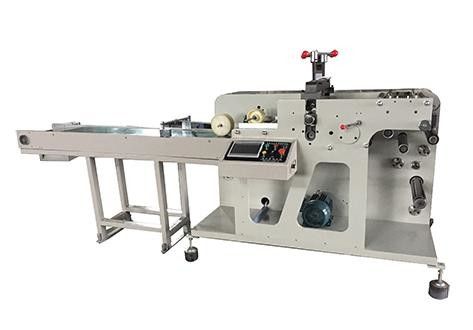

This type circular die-cutting machine, independent research and development of patented products, waste discharge servo winding and unwinding taper tension system, imported famous brand process correc- tion system, the main power is servo motor power, PLC control system, smooth acceleration and deceleration, stable and automatic Counting meters, the number of meters can be set randomly, and the machine will automatically stop when the number of meters is reached.
It is suitable for pattern die-cutting of labels, non-woven fabrics, aluminum foil, elastic cloth, cardboard, PVC, PET and other films, so that the product can be completed from die-cutting to finished product transportation and finish- ing at one time.
The whole machine has the characteristics of compact structure, high speed, high efficiency, simple operation and stable operation.
| Brand Name |
SUNRISE
|
|
Model
|
SR-C320
|
|
Main Motor
|
3kw
|
|
Voltage
|
220/380V
|
|
Dimension(L*W*H)
|
1750*1050*1680mm
|
|
Weight
|
650kg
|
|
Warranty
|
1.5 years
|
|
Production Capacity
|
30-200press/min
|
|
Key Selling Points
|
Automatic
|
|
Max. workable width
|
420mm
|
|
Cutting speed
|
30-200press/min |
|
Position Accuracy
|
±0.5mm
|
|
Uniwinding/Rewinding Diameter
|
500mm
|
