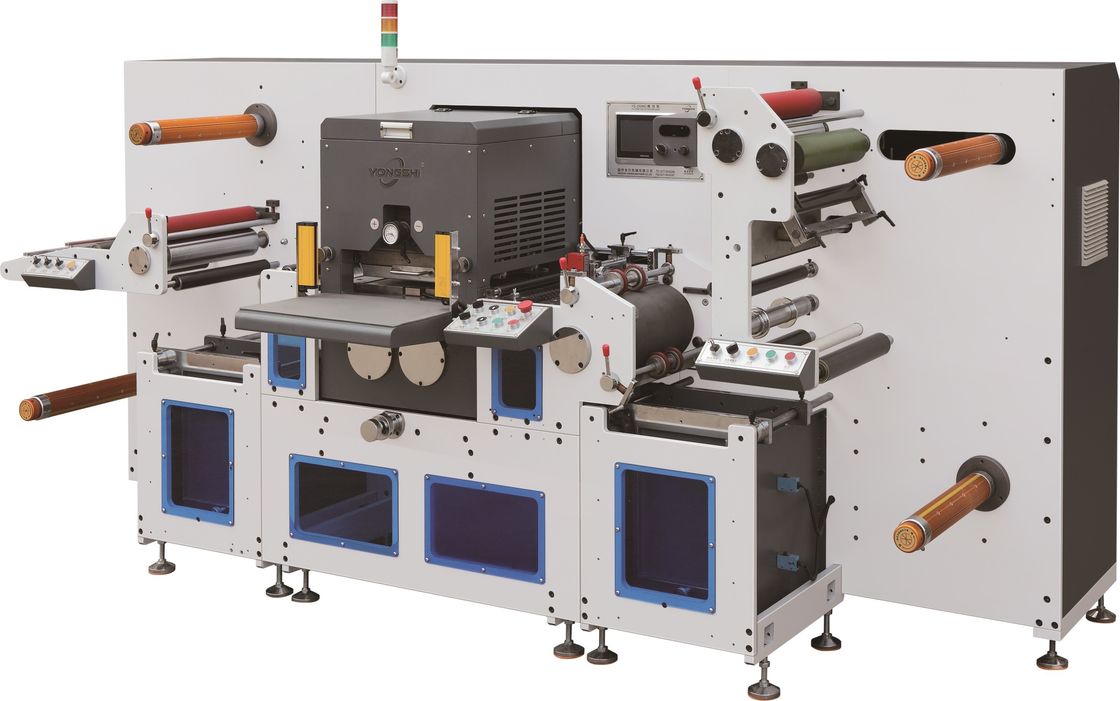

This machine is researched by ourselves. It is flat bed structure, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.

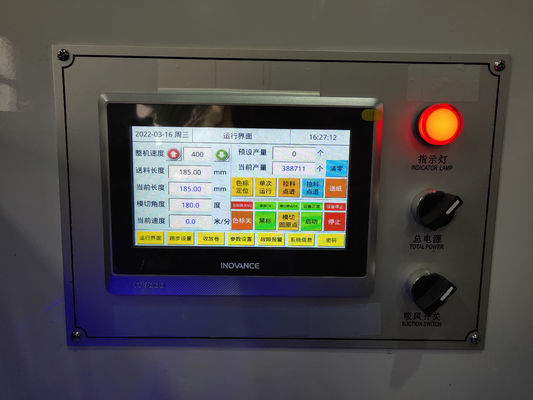

1.Adopt English motion controller,intelligent servo PLC system
2.24000 times/h, 4800m/h die cutting ,ensure run fast,high accuracy working stably
3.Use wood die cutter,cheap and durable
4.Roller automatic inflate,driving system with automatic lubricate system,automatic tension control
5.All are imported parts,such as electronic parts,bearing transducer
Max.Feeding Width | 350mm |
No.1 Cutting Area | |
350mmx350mm | |
Max.Speed | 24000车/小时(24000times/h) |
Max.Length of Meter | 80米/分钟(80m/min) |
Position Accuracy | +0.1mm |
Max.Unwinder Dia | 800mm |
Max.Rewinder Dia | 800mm |
Machine weight | 2800kg |
Voltage | 380V(3-phase 380) |
Dimension(LxWxH) | 3300×1400×1500mm |
