High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine

1
MOQ
$5,800.00 - $7,000.00/sets
Price
High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine
Features Gallery Product Description Request A Quote
Features
Specifications
Inner Chase Size: 1100mm×790mm
Max Cutting Width: 300mm
Size: 500mm X 500mm X 500mm
Warranty After Service: 1 Year
Key Selling Points: Automatic
Screen Size: 7
Drivers: Servo Motor
Warranty Period: 1Years
Service: Online Service
Machinery Type: Building Material Machinery
Driven Type: Electric
Marketing Type: New Product 2019
Die Cut Length: 178-470mm(7
Type: Automatic
Highlight:

high speed rotary die cutting machine

,

label die cutting slitting machine

,

blank label die cutting machine
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-350GT
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 20 days
Payment Terms: L/C
Supply Ability: 30 Set/Sets per Month
Product Description

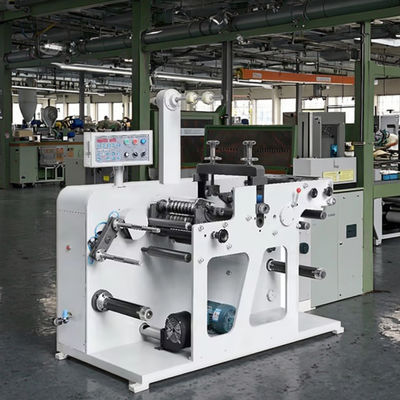

SR-350 High Speed Rotary Die Cutting And Slitting Machine With Slitting For Blank Label

Product Descriptions:

SR-350Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Main Features:

  • Rewinder and unwinder all are with magnetic tension controller
  • Air shaft automatic inflate air
  • Rewind shaft:2 pces of 1inch

Technical parameter:

model YS-350Y YS-450Y
Slitting speed 120m/min 120m/min
Max. Roll Width 350mm 450mm
Max. Unwinding diameter 500mm 500mm
Max. rewinding diameter 500mm 500mm
Accuracy rate ±0.10mm ±0.10mm
weight 650kg 850kg
Dimension 2600*900*1600mm 2700*1300*1700mm
Magnetic size 60T-150T 60T-150T

Main Parts List:

NO. Parts Name Brand
1 Transducer France - Schneider
2 Epc web guide China
3 Main motor China-shanghai
4 Buttons French--Schneider
5 A.C.Contactor China
6 Counter Germany-LEUZE



Machine details:

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 0

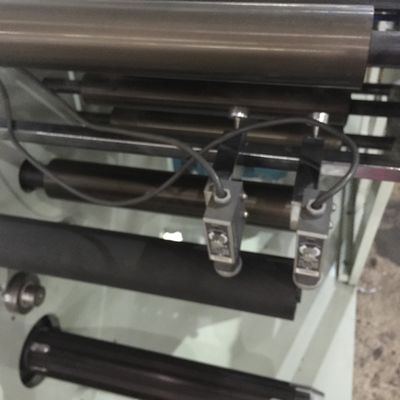

By sensor

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 1

Tension control by magnetic clutch

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 2

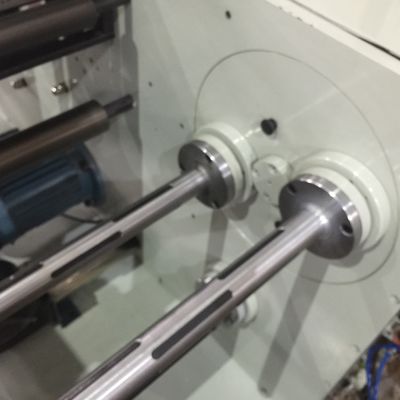

Upper rewind is turret

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 3

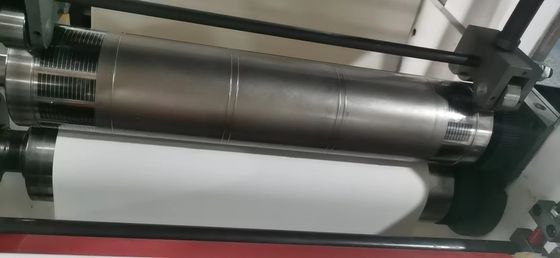

Die cutting parts,Use magnetic cylinder and cutter

Sample:

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 4High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 5

Company Details:

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 6

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 7



Packing & Delivery:

High Speed Rotary Die Cutting Slitting Machine With Slitting For Blank Label-label die cutting machine 8



FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
