Home /Products/Label Die Cutting Machine/Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine

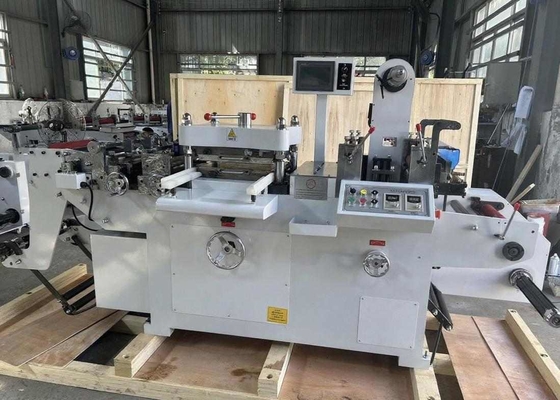

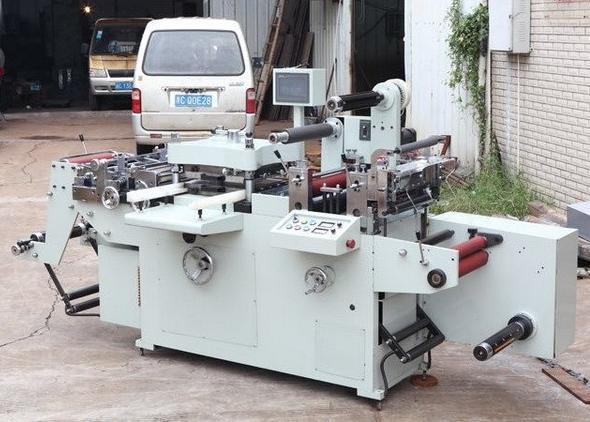

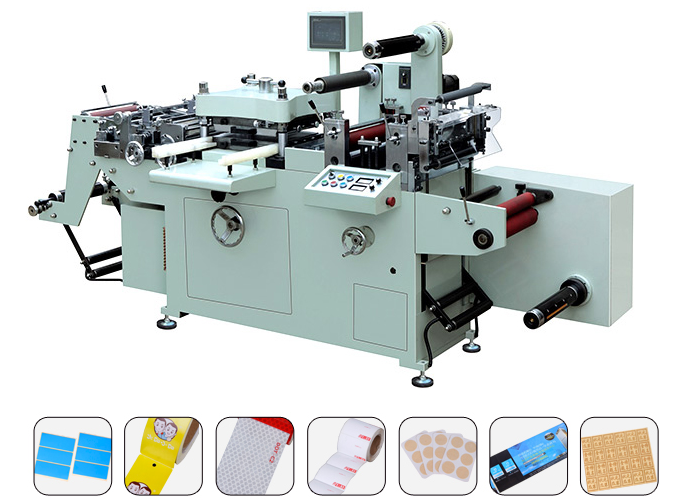

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine

1
MOQ
Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Medium Seepd Rotary Flat Bed Label Pattern Lable Die Cutting Machine
Application: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company
Feature: Insistent Of Platen Pressing Structure, Servo System Control The Material Feeding And Forwarding, The Photoelectric Eyes Track The Material Colors, Unwinding-die Cutting-waste Discharging-sheet Cutting-rewinding All Are Completed In One Turn, All Are Contr
Weight: 2000kg
Voltage: 380V
Power: 6kw
Warrantly: 1year
Unwinding: 650mm
Highlight:

automatic flatbed label die cutter

,

medium speed rotary cutting machine

,

label die cutting machine with warranty
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-350Z
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 15working days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Product Description

High Effciency Flatbed Die Cutting Machine Trademark Technology For Paper Product Manufacturing

Product Descriptions:

  The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.This machine is widely used in electronic line, adhesive product line and so on.

Standard functions:

  • unwinding-die
  • cutting-waste
  • discharging-cutting
  • into pieces-rewinding

​Extended functions:

  • laminating-hot
  • stamping-hole punching

​Technical parameters:

Max. Feeding width 350mm 450mm
Cutting area 330*330mm 430*430mm
Die Cutting speed 300 times/min 300 times/min
Position accuracy ±0.10mm ±0.10mm
Power of main motor 3 kw 4 kw
Size(L*W*H) 2900*1260*1750 3170*1700*1750
Unwinding/rewinding diameter 650mm 650mm
Voltage 380v,3phase 380v,3phase
Total power 6kw 10kw
weight 1900kg 2500kg

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 0

Machine details:

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 1

Wast rewinder with sepatate motor and magnetic



Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 2

roll rewinder with separate motor and magnetic tension controller



Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 3

Photoelectric eyes: Germany--Leuze



Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 4

exported brand parts and auotmatic oil lubricate system



Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 5Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 6

Finished Products:

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 7

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 8

Packing & Delivery:

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 9

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 10

Company Details:



  Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 11

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 12

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

Automatic Medium Speed Rotary Flatbed Label Die Cutting Machine 13
