SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control

1 set
MOQ
SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Feeding Width: 350mm
Cutting Area: 340*340mm
Die Cutting Speed: 200 Times/min
Position Accuracy: ±0.10mm
Power Of Main Motor: 3 Kw
Voltage: 380v,3phase
Total Power: 6kw
Weight: 1700kg
Highlight:

automatic label die cutting machine

,

medium speed precision die cutter

,

label die cutter with waste stripping
Basic Infomation
Place of Origin: ZHEJIANG CHINA
Brand Name: SUNRISE
Certification: CE
Model Number: 350Z
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

Production Description

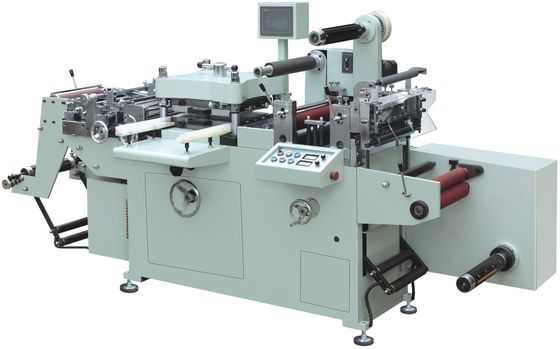

SR-350Z Automatic Medium Speed Label Die Cutting Machine
The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.


Technical parameters:

model SR-350Z
Max. material width 320mm
Cutting area 310*350mm
Max. Cutting speed 300 press/min
Position accuracy ±0.10mm
Max. Length of meter 45m/min
Unwinding/rewinding diameter 550mm
Voltage 380v (3 phase,380v)
Total power 6kw
weight 2000kg
Dimension(L*W*H) 3000*1300*1400


SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 0

SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 1 SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 2


Main Features

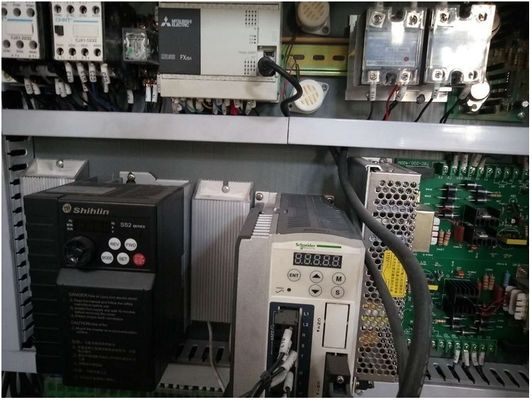

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material, unwinding-die cutting-waste discharging-sheet cutting-rewinding all is completed in one turn, all are control by PLC control system.



Exhibition

SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 3 SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 4



FAQ
SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 5

Related Product
SR-350Z Automatic Medium Speed Precision Label Die Cutting Machine With Auto Waste Stripping & Registration Control 6
