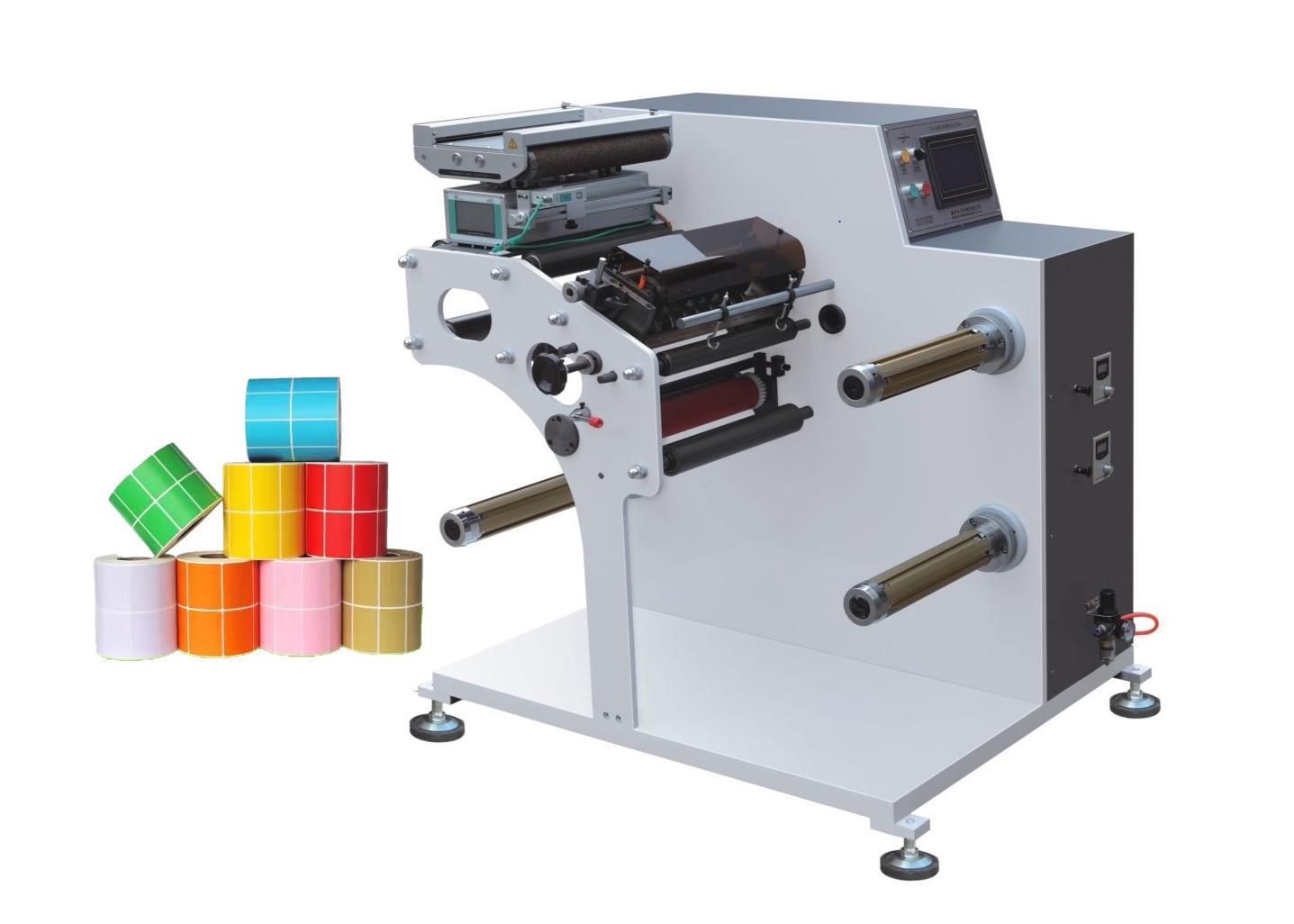

350mm Full Automatic Label Slitting Machine with Servo Motor

1
MOQ
350mm Full Automatic Label Slitting Machine with Servo Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Medium Speed Paper Roll Slitting Rewinding Thermal Paper Slitting Machine
Application: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company
Feature: 1.machine Running Controlled By PLC System 2.tension Controlled By Taper Tension 3.Use Servo Motor Instead Of Normal Motor，work Stable And Precise 4.With Meter And Quantity Counter, Quantity Counter Use Germany Sick Brand 5.Use EPC Web Guide
Weight: 500kgs
Warrantly: 1year
Max.web Width: 350mm
Sliting Speed: 200m/min
Air Supply: 0.8mpa
Highlight:

350mm automatic label slitting machine

,

servo motor label slitter

,

full automatic label cutting machine
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-350FG
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 15working days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets per Month
Product Description

Full Automatic Narrow Web Sticker Label Paper Slitting Machine Slitter Rewinder

Product Descriptions:

  One researched new product, mostly is used for slitting narrow roll material, it is for high level market with full servo driven system, PLC control system, it can meter and number counting, static eliminator, no material no working etc.

Performance and characteristics:

  • machine running controlled by PLC system
  • tension controlled by taper tension
  • Use servo motor instead of normal motor,work stable and precise
  • With meter and quantity counter, quantity counter use Germany sick brand

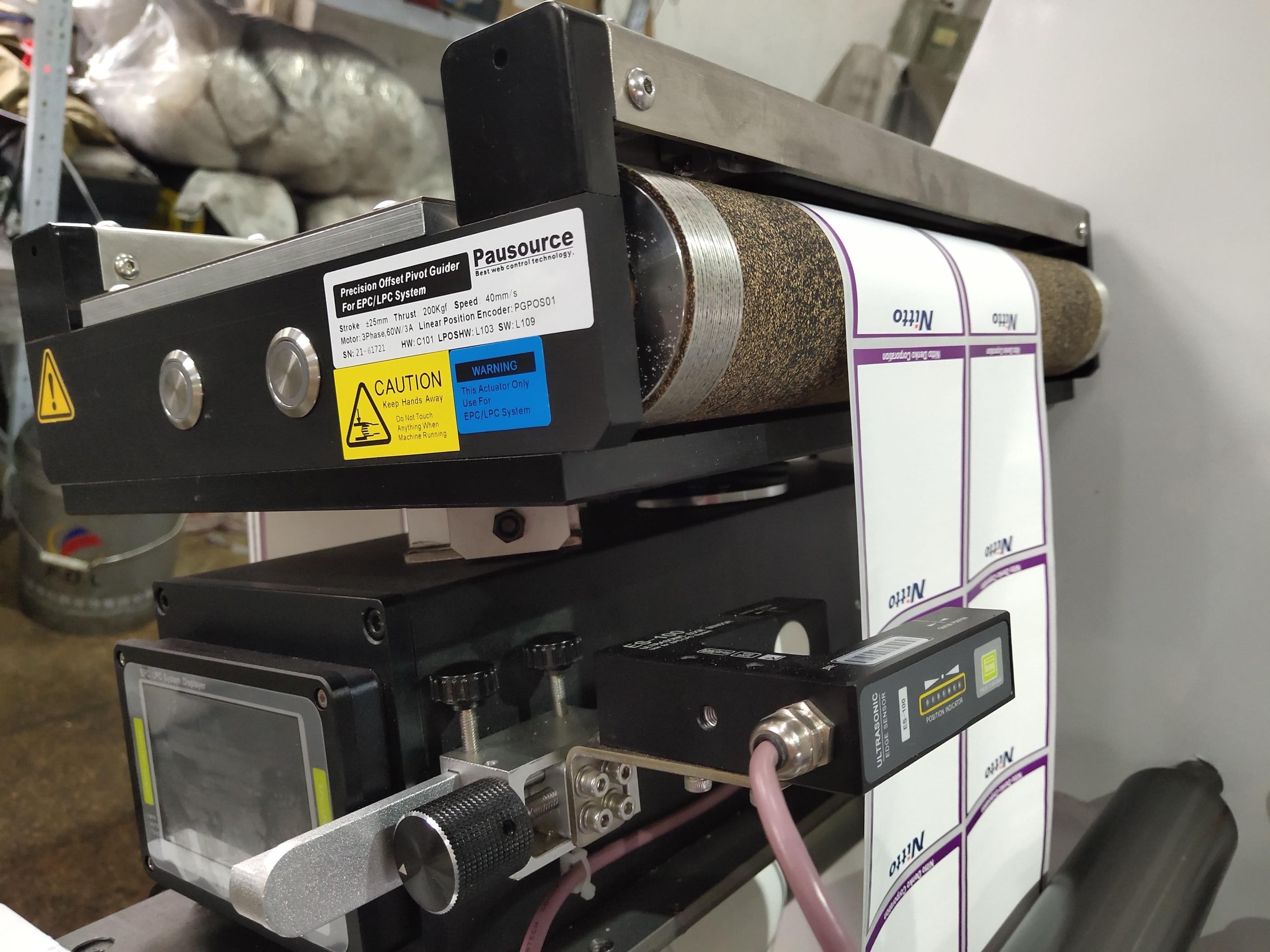

  • Use EPC web guide

​Technical Data:

Model SR-350FG SR-450FG
Max. Slitting speed 220m/min 220m/min
Max web width 350mm 450mm
Min. Slitting width 15mm 15mm
Cutter installed 8 sets 10 sets
Max. Unwinding Dia 600mm 600mm
Max. Rewinding Dia 600mm 600mm
Air supply 0.8mpa 0.8mpa
weight 800kg 1000kg
Dimension(L*W*H) 1600*1100*1300 1650*1200*1350

Main Parts List:

NO. Parts Name Brand
1 PLC China-tonghang
2 Counting sensor Germany--sick
3 Servo Motor China-tonghang
4 Buttons China-chentai
5 A.C.Contactor French--Schneider
6 Touching-screen China- duocai
7 Epc web guide China
8 Tension controller ZXM-50 Taper tension

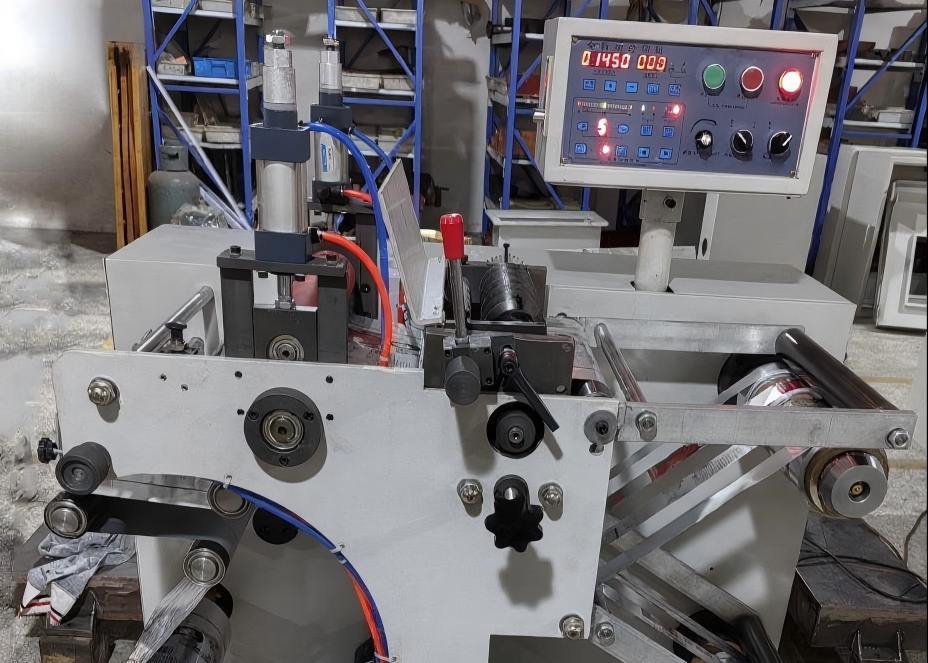

Machine details:

350mm Full Automatic Label Slitting Machine with Servo Motor 0              350mm Full Automatic Label Slitting Machine with Servo Motor 1

350mm Full Automatic Label Slitting Machine with Servo Motor 2



350mm Full Automatic Label Slitting Machine with Servo Motor 3

350mm Full Automatic Label Slitting Machine with Servo Motor 4

350mm Full Automatic Label Slitting Machine with Servo Motor 5

350mm Full Automatic Label Slitting Machine with Servo Motor 6350mm Full Automatic Label Slitting Machine with Servo Motor 7

350mm Full Automatic Label Slitting Machine with Servo Motor 8350mm Full Automatic Label Slitting Machine with Servo Motor 9

Finished Products:

350mm Full Automatic Label Slitting Machine with Servo Motor 10350mm Full Automatic Label Slitting Machine with Servo Motor 11

Packing & Delivery:



350mm Full Automatic Label Slitting Machine with Servo Motor 12350mm Full Automatic Label Slitting Machine with Servo Motor 13

350mm Full Automatic Label Slitting Machine with Servo Motor 14

Company Details:



Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

350mm Full Automatic Label Slitting Machine with Servo Motor 15

350mm Full Automatic Label Slitting Machine with Servo Motor 16

350mm Full Automatic Label Slitting Machine with Servo Motor 17

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
