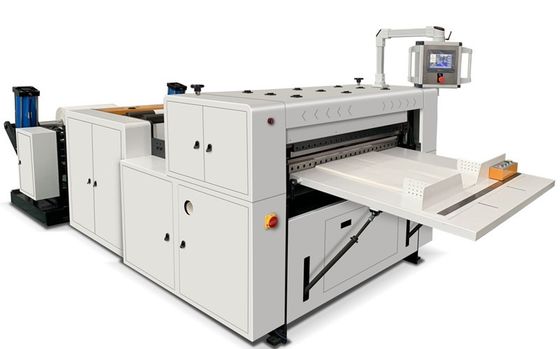

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function

1
MOQ
Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function
Feature: Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function
Warrantly: 1year
Weight: 4000kgs
Cutting Length: 20-1200mm
Machine Speed: 20-200times/min
Power: 8kw
Put （slitting）speed: 20-180times/min
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: HKA-1100
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 15working days
Supply Ability: 30 Set/Sets per Month
Product Description

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function

Product Descriptions:

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function.

Main Technical Parameters:

Model HKA-1100

Max.Diameter of Unwinding

1400mm
Max. Cutting Width 1100mm
Cutting Length 20-1200mm
Machine Speed 20-200times/min
Put (slitting)speed 20-180times/min
Paper GSM 20-200g
Cutting Precision ±0.2mm
Ream Height(mm) 500pcs
Total Power 8kw
Machine Weight 4000kg
Compressed air(Mpa) 0.6-0.8Mpa(Customer's own responsibility)
One machine need 3KW air compressed,if the factory has one big air compressed,it will be better.
Main power source

380V/50HZ,

3phase 4 wires

Machine Size(L*W*H)

 4200×1900×1600(mm)



Main electrical equipment:

number name Brand
1 PLC modular Japan Panasonic
2 PLC Japan Panasonic
3 Touch Screen China
4 The main traction motor

China Shanghai 1.5W
5 Feed motor 3China,INVT 3KW
6 frequency convertor China,Sinne 3KW
7 Tension System automatic tension
8 EPC Ultrasonic correction
9 Pneumatic components Mindman
10 revolving knife two sites
11 slitting knife

China 3 sites


12 fan China 0.75kw
13 contactor Schneider
14 relay Schneider
15 switch knob Schneider
16 Proximity OMRON
17 alarm China
18 Linear Orbit

China Taiwan Shangyin
19 synchronous belt China
20 Magnetic powder China yanxin,1 set



Machine configuration:

  • Unwinding Unit
  • Control way through PLC tape control way(Panasonic Japan)
  • Unwinding use 3#air shaft(1 sets)
  • Driver roller use aluminum roller, through static balanced aluminum alloy guide roller
  • air shaft loading equipment structure system
  • Unwinding use photocell control edge position control system(1 sets)

​Machine details:

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 0

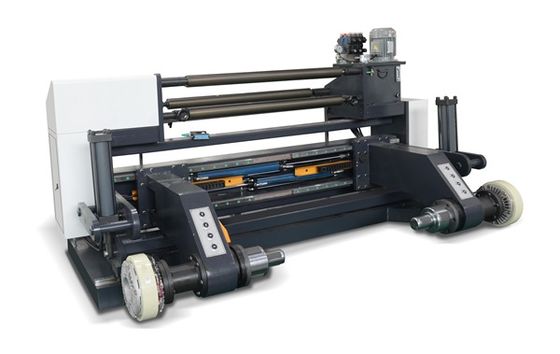

Unwinding structure(air shaft)

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 1

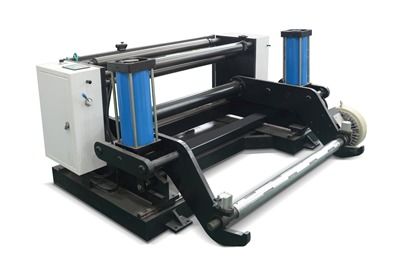

Unwinding structure(shaftness)

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 2

EPC

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 3

Tools

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 4

Round slitting

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 5

Color choosed

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 6

Cross-cutting knife structure

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 7

Workshop

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 8

Manual paper dispensing device:

The paper is collected by the common manual table board. When the paper reaches a certain height, the material will be discharged manually.



Packing & Delivery:



Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 9Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 10

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 11

Company Details:



Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 12

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 13

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 14

Industrial Low Rate Of Fault Roll To Sheet Paper Sheet Cutting Machine With Slitting Function 15

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
