Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables

1
MOQ
Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables
Features Gallery Product Description Request A Quote
Features
Specifications
Pruduct Name: Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables
Application: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company
Feature: 1.Turret Shaft, And Easy To Change Different Size Of Rewind Shaft 2.All Shafts Automatic Inflate Air 3.This Standard Machine With 3 Magnetic Tension Controllers. 4.Machine With 2 Sets Of 1inch Shafts
Weight: 400kgs
Warrantly: 1year
Sliting Speed: 120m/min
Max.web Width: 350mm
Voltage: 220V
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-350Fll
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 15working days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets per Month
Product Description

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables

Product Descriptions:

SR-320F/420F is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.

Features:

  • Turret shaft, and easy to change different size of rewind shaft
  • All shafts automatic inflate air
  • This standard machine with 3 magnetic tension controllers.
  • Machine with 2 sets of 1inch shafts

Technical parameters:

型号 Model YS-350FII YS-450FII
分切速度 Slitting speed 120m/min 120m/min
卷筒材料最大宽度 Max. Width 350mm 450mm
最大放卷直径 Max. Unwinding diameter 500mm 500mm
最大收卷直径 Max. rewinding diameter 500mm 500mm
最小分切宽度 Min. Slitting width 16mm 16mm
最大分切宽度 Max. Slitting width 340mm 440mm
定位精度 Accuracy rate ±0.10mm ±0.10mm
电压 Voltage 220v 220v
主机功率 Main motor power 1.5kw 2kw
重量 weight 600kg 700kg
外形尺寸 Dimension 1200*800*1280mm 1300*900*1280mm



Main Parts:

NO. Parts Name Brand
1 Web-guide eyes Baideli
2 Transducer TAIWAN SHILIN
3 counter sensor Germany-sick
4 Proximity Switch China
5 Power Switch French--Schneider
6 Relay China--Chnt
7 Buttons French--Schneider
8 A.C.Contactor China--Chnt

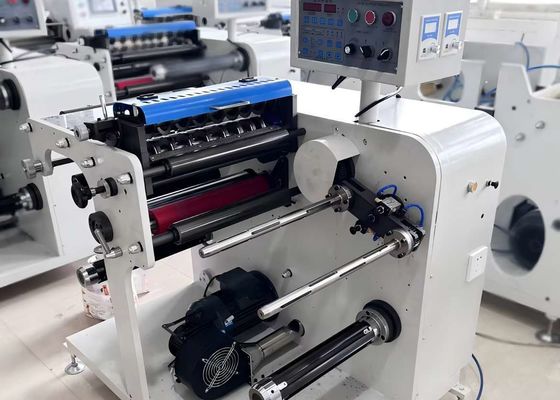

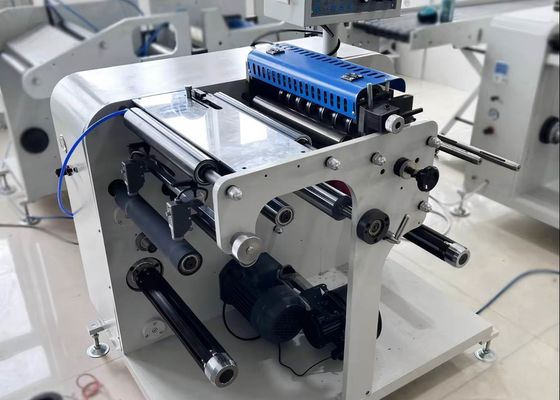

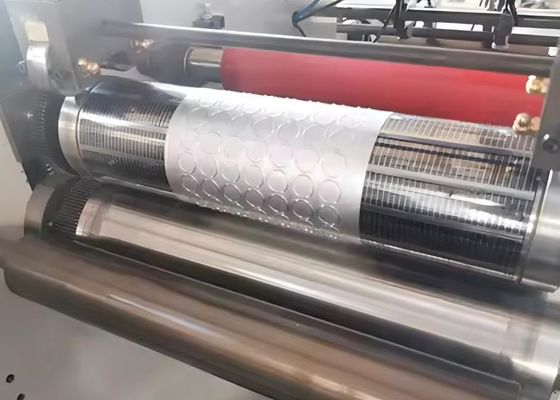

Machine details:

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 0Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 1Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 2Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 3Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 4Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 5Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 6Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 7Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 8Finished Products:

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 9Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 10

Packing & Delivery:



Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 11Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 12

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 13

Company Details:



Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 14

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 15

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 16

Automatic Turret Type Rewinder Paper Slitter Cut Rewinder Machine For Blank Lables 17

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
