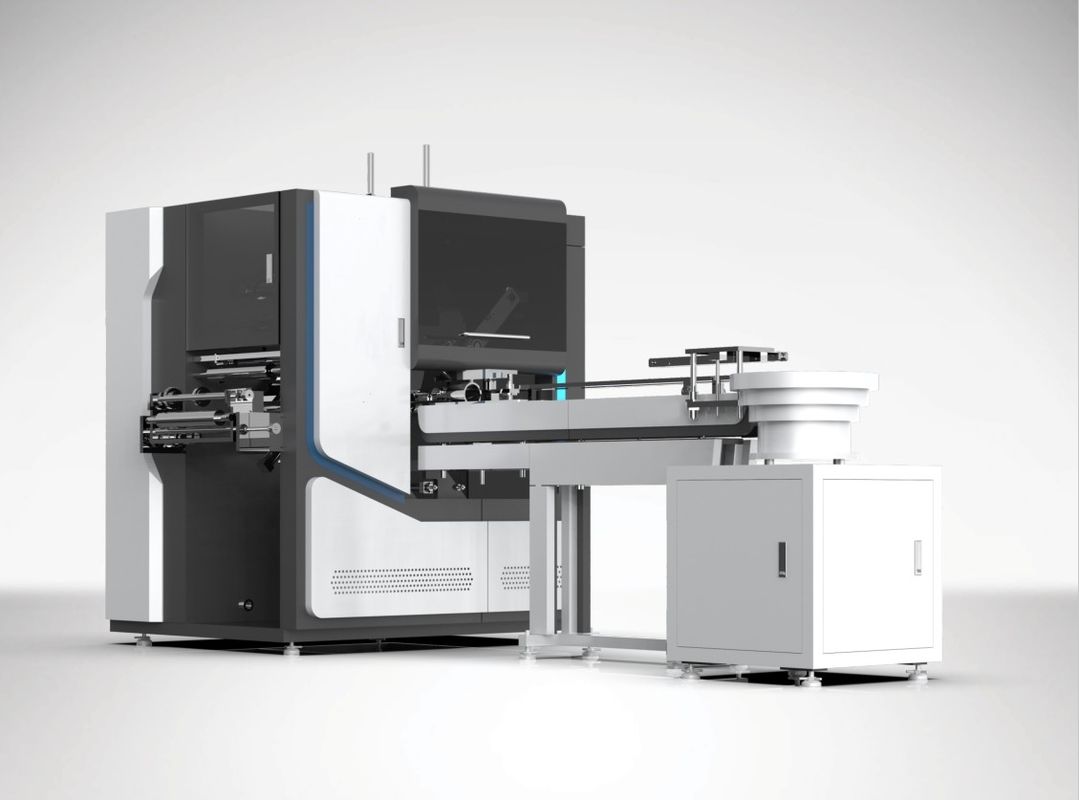

Automatic Label Slitting And Rewinding Machine 4 Shaft For Slitter Rewinder Machine in china cheaper

Automatic Label Slitting And Rewinding Machine 4 Shaft For Slitter Rewinder Machine in china cheaper

  • Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper
  • Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper
  • Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper
  • Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper
Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper
Product Details:
Brand Name: SUNRISE
Certification: CE
Model Number: SR-320
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 35000-50000
Packaging Details: WOOD BOX
Delivery Time: 30 DAYS
Supply Ability: 15SETS/MONTH
Contact Now
Detailed Product Description
MODEL: SR-320 MATERIAL: LABEL
WARRANTY: 1 YEAR FUNCTION: AUTOMATIC NON-STOP REWIND
REWIND SHAFT: 25,40,76 OPTION: DIE CUTTING, SLITTING,FILM PACKING
Highlight:

4 Shaft Label Slitting Machine

,

Non Stop Label Slitting Machine

,

220V auto slitting machine

Automatic Label Slitting And Rewinding Machine 4 Shaft For Slitter Rewinder Machine in china cheaper





Machine features:

1. Fully automatic 4-shaft turret type non-stop rewinding machine, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of jog, speed increase, speed reduction, emergency, to realize the best condition of printing machine.



2. The turret type rewinding machine system adopts the chinese famous brand innovice, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a vibrating plate automatic paper-feeding tube mechanism, a discharge mechanism, to realize online non-stop rewinding.



3. The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a 1-inch 1.5-inch 2-inch quick release air-expansion shaft. The rewinding machine does not require manual mechanical adjustment when changing the size of different reels, its system automatically adjusts the size of the reel to reduce the labor force for intelligent production.



Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 0



Specification:

P/N Origin Qty Remark
Control system China   Innovice
EPC web guide China   Arise
Low voltage electrical appliance France   Schneider
Bearing Japan   NSK
TOUCH SCREEN China   FANYI
Servo motor China   Airtac
Pneumatic element Taiwan   1”, 1.5”,2”,3”
Model size 350mm 450mm 570mm
Max rewinding diameter 350mm 350 mm 350mm
Max width 350mm 450mm 550mm
Min rewinding width 40mm 60mm 100mm
Total power 10KW 14KW 16KW
Power supply 3PH+N+PE 3PH+N+PE 3PH+N+PE
Machine dimension 1.5X3X1.7m 1.5X3.2X1.7m 1.5X3.6X1.7m
Machine weight 2.2T 2.5T 2.8T
Air pressure 0.8MPA 0.8MPA 0.8MPA



Machine speed: Max 120m/min when rewinding shaft is 25-38mm

Max 150m/min when rewinding shaft is 50-76mm



Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 1

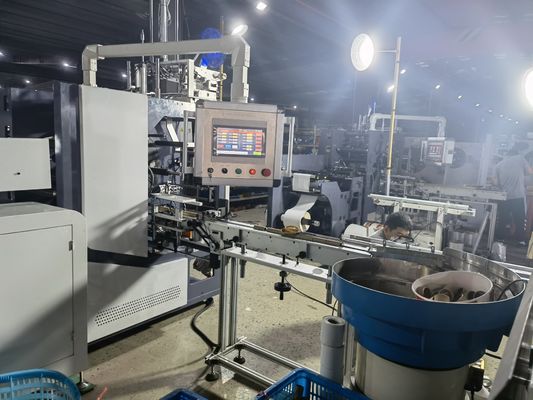

it can connect with slitting machine, rotary die cutting machine,and film packing machine.



Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 2

with paper core loader, auto feeder



Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 3

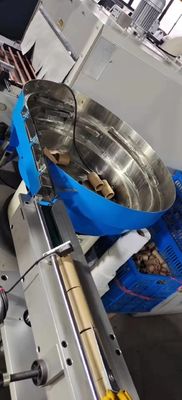

paper core auto feeder



Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 4

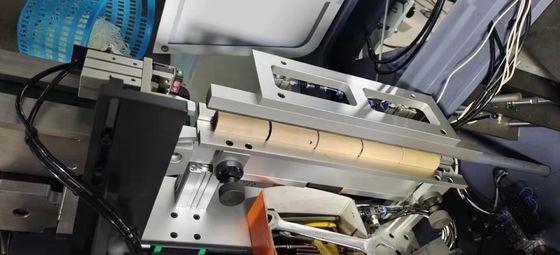

4 shafts, non stop rewind







Packing & Delivery:

Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 5

Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 6
exported wooden case
Company Profile

Automatic Label Slitting And Rewinding Machine 4 Shaft  For Slitter Rewinder Machine  in china cheaper 7

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
