SR-350YB Rotary Blank Label Die Cuting Machine With Slitter

1 set
MOQ
SR-350YB Rotary Blank Label Die Cuting Machine With Slitter
Features Gallery Product Description Request A Quote
Features
Specifications
Slitting Speed: 120m/min
Max. Roll Width: 350mm
Max. Unwinding Diameter: 700mm
Accuracy Rate: ±0.10mm
Weight: 600kg
Dimension: 1700*1000*1600mm
Magnetic Size: 60T-150T
Highlight:

rotary die cutting machine with slitter

,

SR-350YB label die cutting machine

,

blank label rotary cutting machine
Basic Infomation
Place of Origin: ZHEJIANG CHINA
Brand Name: SUNRISE
Certification: CE
Model Number: 350YB
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Product Description

SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 0

Functional characteristics:



SR-350YB model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure , fast speed , high efficiency ,easy operation ,accurate slitting and stably running and so on features.

Features:



1. Rewinder and unwinder all are with magnetic tension controller



2. Air shaft automatic inflate air







Model SR-350YB SR-450YB
Slitting speed 120m/min 120m/min
Max. Roll Width 350mm 450mm
Max. Unwinding diameter 700mm 700mm
Max. rewinding diameter 600mm 600mm
Accuracy rate ±0.10mm ±0.10mm
weight 600kg 800kg
Dimension 1700*1000*1600mm 1800*1300*1700mm
Magnetic size 60T-150T 60T-150T







Main Parts:



NO. Parts Name Brand
1 Transducer Taiwan shilin
2 Photoelectric eyes Baideli
3 Proximity Switch Germany--Leuze
4 Relay China--Chnt
5 Buttons French--Schneider
6 A.C.Contactor China--Chnt
7 Counter Ruixiang

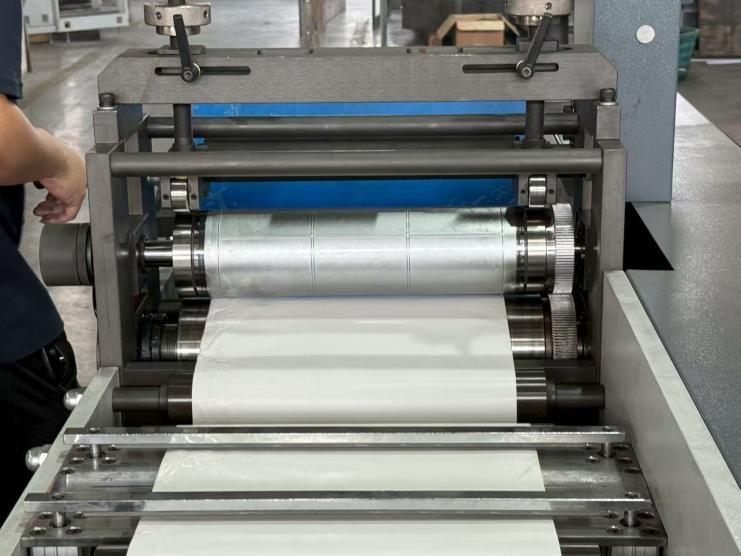

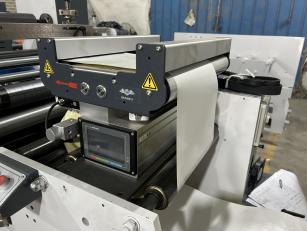

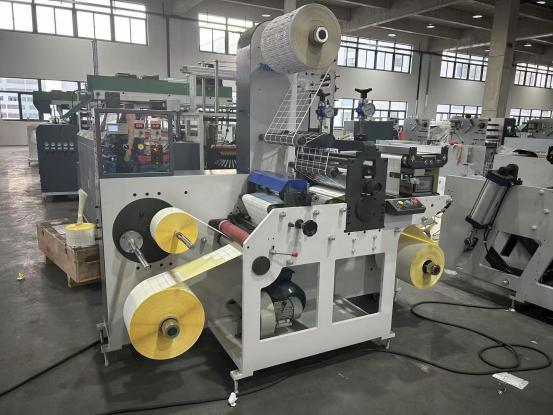

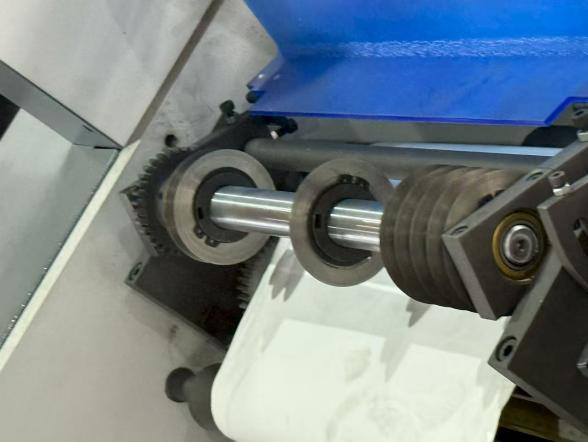

SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 1SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 2SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 3SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 4SR-350YB Rotary Blank Label Die Cuting Machine With Slitter 5



Tag:

220V Rotary Die Cutting Machine

380V Rotary Label Die Cutting Machine

3kw Label Die Cutter
