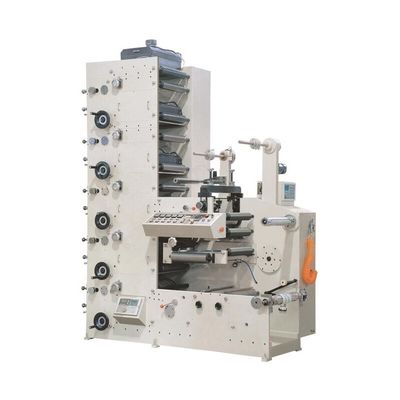

Automatic Roll to Roll UV IR Flexo Adhesive Label Sticker Printing Machine for 4 Color with Die Cutting Unit and Video Camera
Automatic Roll to Roll UV IR Flexo Adhesive Label Sticker Printing Machine for 4 Color with Die Cutting Unit and Video Camera
Product Description
Automatic Roll to Roll UV IR Flexo Adhesive Label Sticker Printing Machine for 4 Color with Die Cutting Unit and Video Camera
This automatic roll-to-roll flexo adhesive label printing machine supports 4-color printing with die-cutting and video camera features, suitable for high-precision label production. It integrates multiple functions like printing, varnishing, drying, laminating, and rewinding, ensuring efficient operation at a speed of 10-60 m/min. The machine adopts a high-quality ceramic anilox cylinder for ink transfer, IR dryers for each printing unit, and auto-tension control for unwinding. With a precision of ±0.15mm and thermal-treated rollers, it guarantees consistent quality and durability.
Key attribute
Type
Flexographic Printer
print speed
80 m/min
Number of Colors
4-Color
automatic grade
Automatic
structure
Stack
Application
For Paper, Label, For Plastic Film
usage
Label Printer, Paper Printer, Paper Bag, Other
warranty
1 Year
Special Feature
Touch Screen, UV Curing
Control Type
Android
plate type
FLEXO
condition
New
color & page
4 Colors
place of origin
Zhejiang, China
brand name
Gawang
voltage
380V/220V
dimensions(l*w*h)
4000*2100*2300mm
weight
4200
Model Number
GW-YS-320
Printing color
4Color Flexo Printing Machine
Printing Speed
50-80m/mins
Max. printing width
320mm
Max.unwinding width
320mm
Max.unwinding Diameter
600mm
Max.rewinding Diameter
600mm
Printing Length
175-380mm
Specifications:

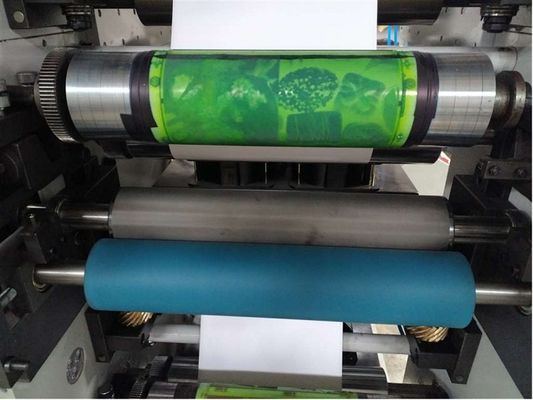

l Adopt high quality ceramic anilox cylinder to transfer the ink.
l Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch.
l Unwinding adopts auto tension controller.
l Each printing unit adopts 360° degree adjustment, it can independently gear and loosen, so other printing units can continue do printing.
l Each printing unit equips with IR and hot air
l Equipped with web guide for tracking.
l This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
l The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
l The main machine inverter is imported.
l It equipped with 3” air expanding shaft on unwinding/rewinding section.
l All the rollers are deal with thermal treated.
l The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label.
Main parts
1.transducer :innovance
2.:low voltage apparatus:chentai
3.magnetic clutch :shengda
4.temperature controller:keqiang
5.main motor:shanghai
7.pneumatic element:airtac
8.Tension control:ZXT shanghai
9.web guide:kesai
10.led uv:zikun
11.drive bearing:haerbing
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine
4. why should you buy from us not from other suppliers?
Wenzhou Yongshi Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational
