Home /Products/Digital Die Cutting Machine/Cutting Machine

Cutting Machine

1
MOQ
5000-6000USD
Price
Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max.Diameter Of Unwinding: Φ1400mm
Max. Cutting Width: 1100mm
Cutting Length: 20-1200mm
Machine Speed: 20-200times/min
Paper GSM: 20-200g
Total Power: 8kw
Main Power Source: 380V/50HZ, 3phase 4 Wires
Machine Size(L*W*H): 4200×1900×1600（mm）
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE MACHIINE
Certification: CE
Model Number: HKA-1100
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

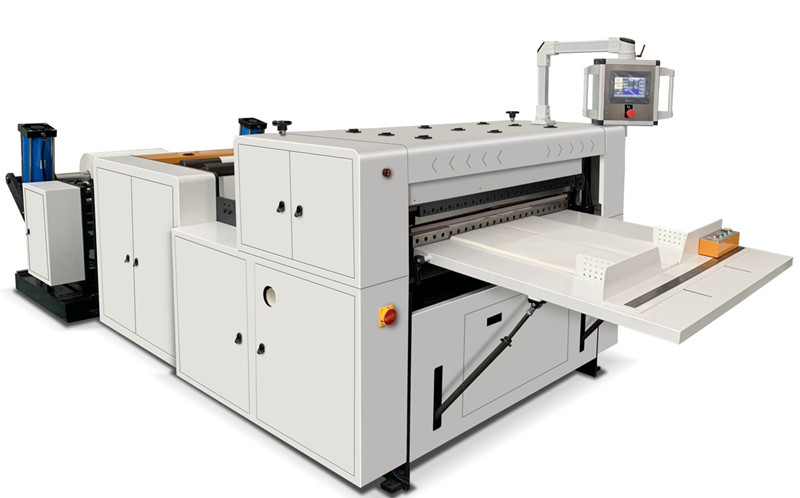

HKA-1100 Cutting Machine



1.Suitable for

This machine suitable for a lot of paper, A4/A3 paper,hamburg paper,PVC,PET,film laminated etc best jumbo roll cutting machine.

2.Main Technical Parameters:

　Model HKA-1100
Max.Diameter of Unwinding Φ1400mm
Max. Cutting Width 1100mm
Cutting Length 20-1200mm
Machine Speed 20-200times/min
Put(slitting)speed 20-180times/min
Paper GSM 20-200g
Cutting Precision ±0.2mm
Ream Height(mm) 500pcs
Total Power 8kw
Machine Weight 4000kg
Compressed air(Mpa) 0.6-0.8Mpa(Customer's own responsibility)
One machine need 3KW air compressed,if the factory has one big air compressed,it will be better.
Main power source

380V/50HZ,

3phase 4 wires
Machine Size(L*W*H) 4200×1900×1600(mm)



3.Machine configuration

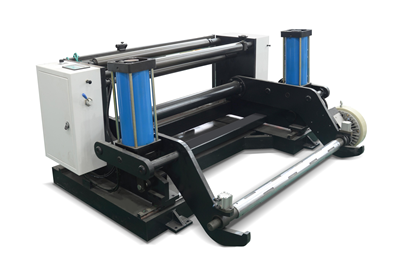

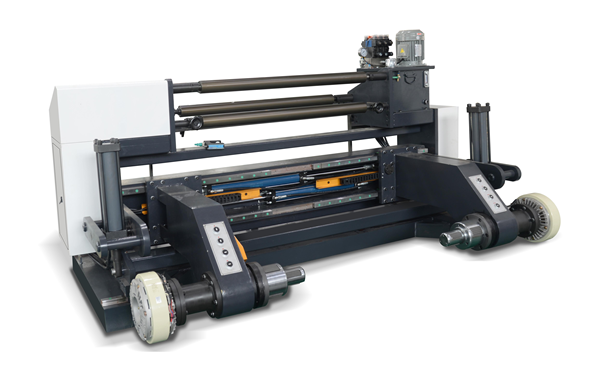

Unwinding Unit:

Control way:through PLC tape control way(Panasonic Japan)

Unwinding use 3#air shaft(1 sets)

Driver roller use aluminum roller, through static balanced aluminum alloy guide roller

air shaft loading equipment structure system

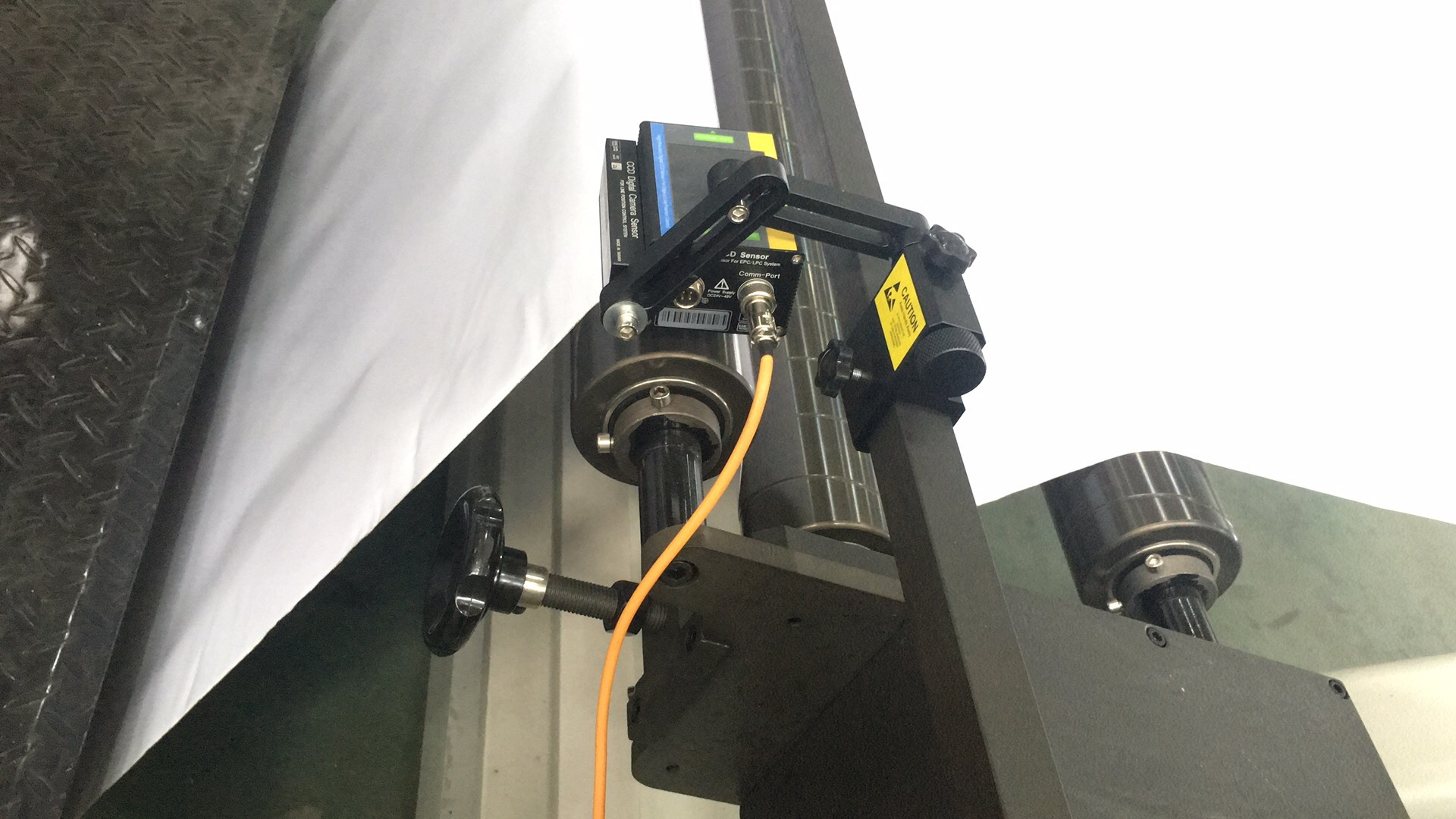

Unwinding use photocell control edge position control system(1 sets)

4.Main electrical equipment

(number) (name) (brand)
1 ( PLC modular) (Japan Panasonic)
2 PLC (Japan Panasonic)
3 (Touch Screen) (China )
4 (The main traction motor)

1.5KW

(China Shanghai 1.5W)
5 (Feed motor) 3KW( China,INVT 3KW)
6 (frequency convertor) China,Sinne 3KW
7 (Tension System) (automatic tension)
8 (EPC) ( Ultrasonic correction)
9 (Pneumatic components) (Mindman)
10 (revolving knife) (China HSS ( two sites ))
11 (slitting knife)

(China 3 sites)


12 (fan) ( China 0.75kw)
13 (contactor) (Schneider)
14 (relay) (Schneider)
15 (switch knob) (Schneider)
16 (Proximity) (OMRON)
17 (alarm) (China)
18 (Linear Orbit ) (China Taiwan Shangyin)
19 (synchronous belt) (China)
20 (Magnetic powder) (China yanxin,1 set)
