Place of Origin: | Zhejiang, China |
Brand Name: | YONGSHI |
Certification: | CE Certificate |
Model Number: | YS-350GT |
Price: | $93,000.00 - $113,000.00/sets |
---|---|
Packaging Details: | exported wooden case |
Supply Ability: | 15 Set/Sets per Quarter |
Condition: | New | Type: | Die-cutting Machine |
---|---|---|---|
Computerized: | Yes | Voltage: | 380V |
Power: | 18kw | Dimension(L*W*H): | 3700*1600*2000mm |
Weight: | 4000kg | Warranty: | One Year |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | Label Die Cutting And Hot Stamping Machine |
Model: | YS-350GT | Speed: | 400 Press/min, 120m/min |
Function: | Stamping And Die Cutting | Application: | Label,sticker |
Color: | White | Port: | Ningbo/Shanghai |
Highlight: | 18kw Digital Die Cutting Machine,Hot Stamping Digital Die Cutting Machine,380V die cutting equipment |

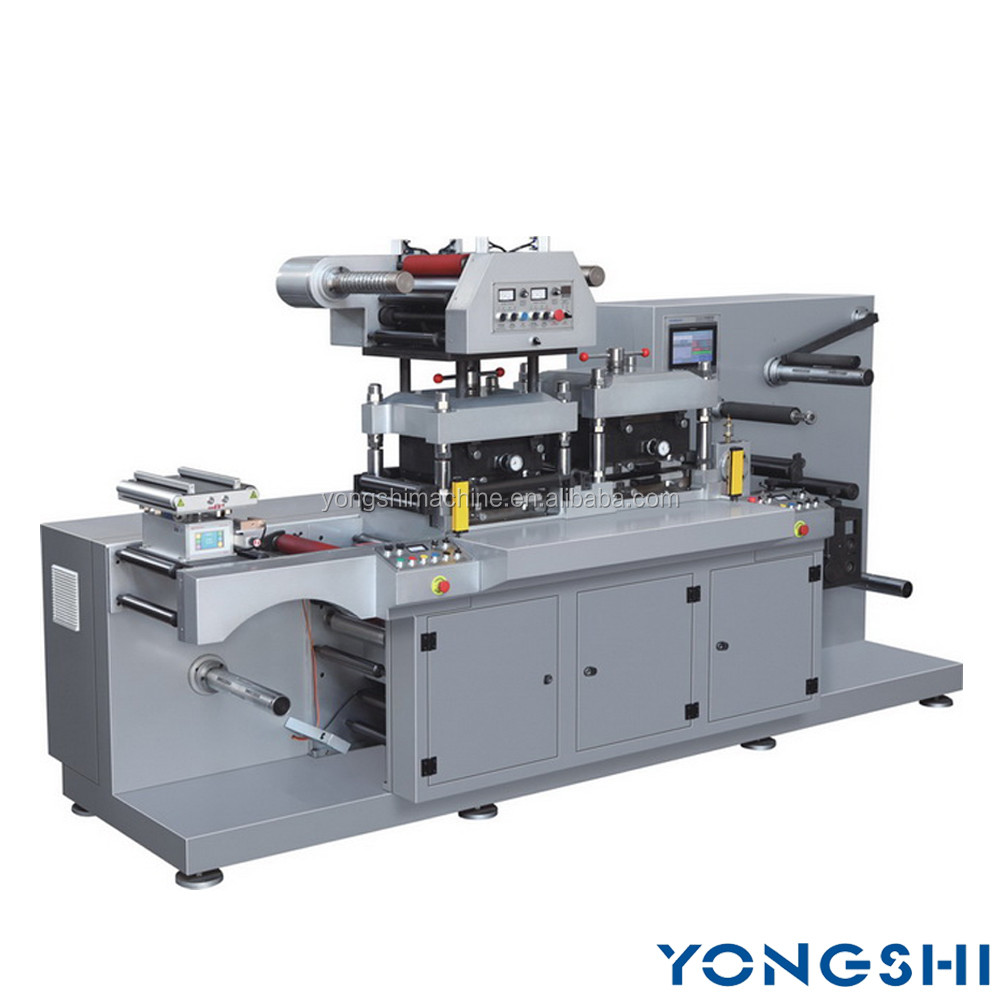

YS-350GT Model Batch-Type Automatic High Speed Hot Stamping And Die Cutting Machine
Scope of application:
It is used for die cutting adhesive label,adhesive tape rated products, this machine is best choice for working with high speed roll label printing machine,flexo printing machine,satellitic printing machine,PS printing machine,batch-type printing machine.
Introduction:
This machine is researched by ourselves. It is incline flat structure, sermi-rotary/rotary die cutting, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.
Feature:
1. Adopt English Trio system,motion controller, intelligent servo PLC system.
2. Automatic web-guiding system
3. 24000 times/h, 7200m/h die cutting,ensure run fast, high accuracy, working stably
4. use wood die cutter, cheap and durable.
5. Roller automatic inflate, driving system with automatic lubricate system, Automatic tension control
6. It can do vertical and horizontal hot stamping
7. It can semi-rotary sheet cutting, also can rotary die cutting
8. All are imported parts, such as electronic parts, bearing, transducer,servo motor and so on.
Technical data:
Model |
YS-350GT |
Max Feeding width |
320mm |
No.1 Cutting area |
300mm×320mm |
No.2 Cutting area |
360mm×320mm |
Max.speed |
24000 times/h |
Max.length of meter |
120m/min |
Max.hot stamping speed |
20000 times/h |
Position Accuracy |
±0.1mm |
Max.unwinder dia |
800mm |
Max.rewinder dia |
800mm |
Voltage |
3 phase, 380 |
Gross power |
18kw |
Weight |
5000kgs |
Dimension(L×W×H) |
3700mm×1400mm×1900mm |

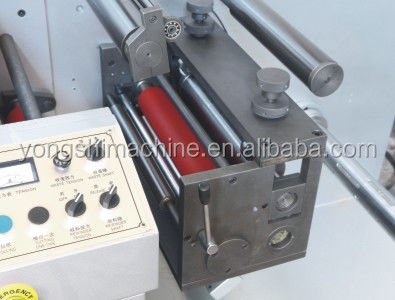

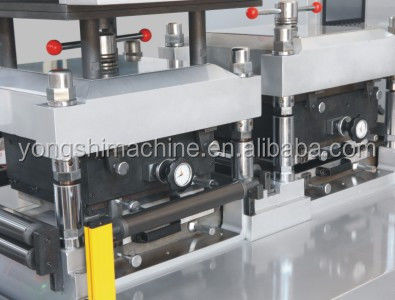

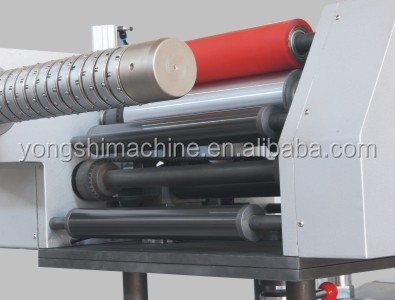

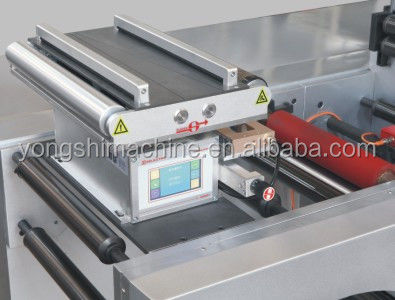

Detail Photos

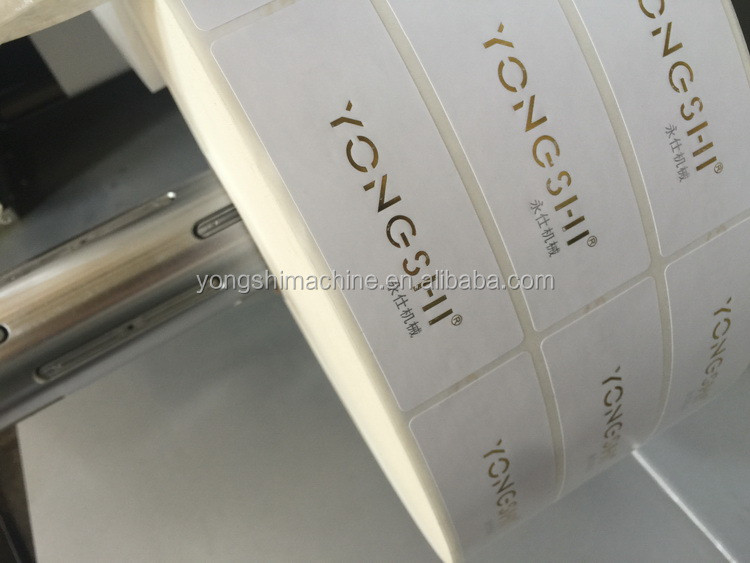

Sample:
