Name: Rotary Blank Label Die Cuting Machine With Slitter
Brand: Wenzhou Sunrise Machinery Co.,Ltd
SKU: YS-350Y
Price: 6500 USD
Availability: InStock

Home Products Rotary Die Cutting Machine

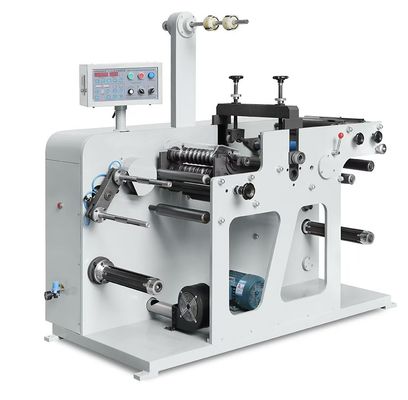

Rotary Blank Label Die Cuting Machine With Slitter

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	SUNRISE
Certification:	CE
Model Number:	YS-350Y

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	6500USD
Packaging Details:	exported wooden case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	30 Set/Sets per Month

Contact Now

Detailed Product Description

Slitting Speed:	120m/min	Type:	Rotary
Machine Size:	26009001600mm	Magnetic Size:	60T-150T
Keywords:	Rotary And Slitting Die Cutting Machine	Condition:	New
Max. Roll Width:	350mm	Max. Unwinding Diameter:	500mm

Rotary Blank Label Die Cuting Machine With Slitter

Functional characteristics:

YS-350Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Features:

Rewinder and unwinder all are with magnetic tension controller
Air shaft automatic inflate air
Rewind shaft:2 pces of 1inch

Technical parameters:

model	YS-350Y	YS-450Y
Slitting speed	120m/min	120m/min
Max. Roll Width	350mm	450mm
Max. Unwinding diameter	500mm	500mm
Max. rewinding diameter	500mm	500mm
Accuracy rate	±0.10mm	±0.10mm
weight	650kg	850kg
Dimension	26009001600mm	270013001700mm
Magnetic size	60T-150T	60T-150T

Machine details

1	by sensor
2	Tension control by magnetic clutch
3	Upper rewind is turret
4	Die cutting parts,Use magnetic cylinder and cutter

Main Parts:

NO.	Parts Name	Brand
1	Transducer	France - Schneider
2	Epc web guide	China
3	Main motor	China-shanghai
4	Buttons	French--Schneider
5	A.C.Contactor	China
6	Counter	Germany-LEUZE

Tag:

220V Rotary Die Cutting Machine,

380V Rotary Label Die Cutting Machine,

3kw Label Die Cutter
