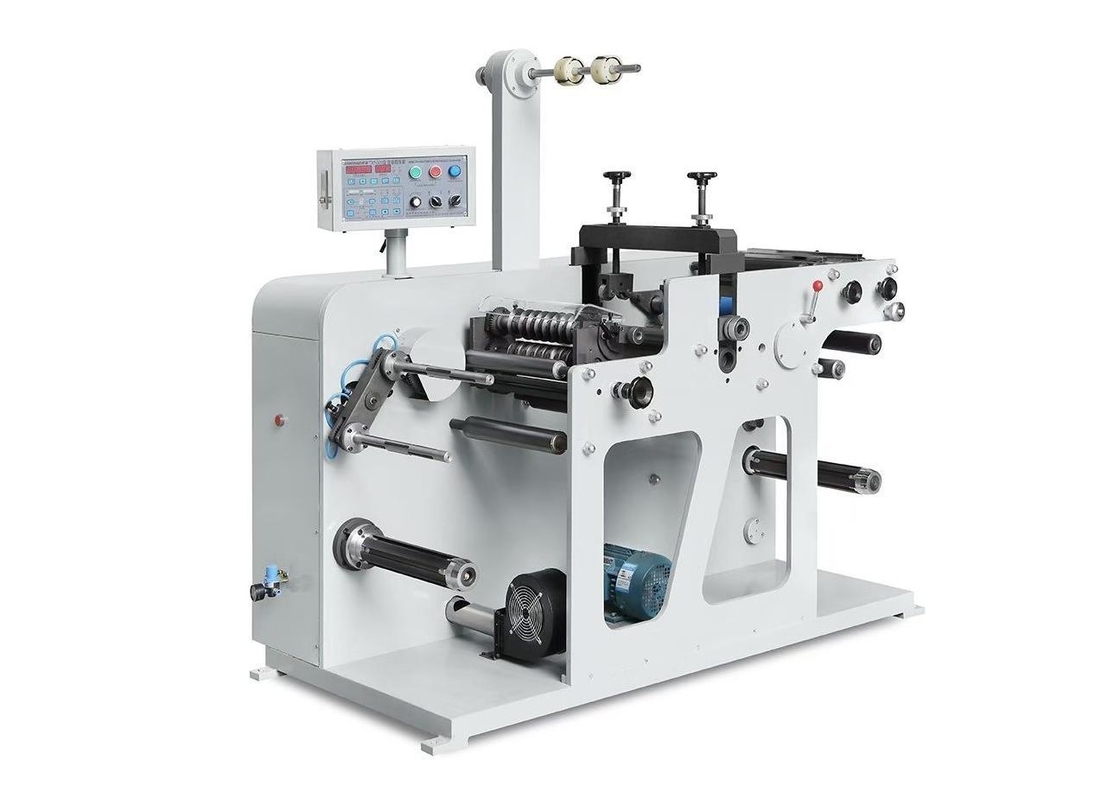

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label

Product Details:
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-350GT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $5,800.00 - $7,000.00/sets
Packaging Details: Exported Wooden Case
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Rotary Die Cutting And Slitting Machine With Slitting For Blank Label Application: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company
Feature: Rewinder And Unwinder All Are With Magnetic Tension Controller,2.Air Shaft Automatic Inflate Air,3.Rewind Shaft:2 Pces Of 1inch Weight: 650kgs
Magnetic Size: 60T-150T Model: SR-350Y
Warranty: 1year Slitting Speed: 120m/min

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label

Product Descriptions:

SR-350Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Main Features:

  • Rewinder and unwinder all are with magnetic tension controller
  • Air shaft automatic inflate air
  • Rewind shaft:2 pces of 1inch

Technical parameter:

model YS-350Y YS-450Y
Slitting speed 120m/min 120m/min
Max. Roll Width 350mm 450mm
Max. Unwinding diameter 500mm 500mm
Max. rewinding diameter 500mm 500mm
Accuracy rate ±0.10mm ±0.10mm
weight 650kg 850kg
Dimension 2600*900*1600mm 2700*1300*1700mm
Magnetic size 60T-150T 60T-150T

Main Parts List:

NO. Parts Name Brand
1 Transducer France - Schneider
2 Epc web guide China
3 Main motor China-shanghai
4 Buttons French--Schneider
5 A.C.Contactor China
6 Counter Germany-LEUZE



Machine details:

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 0

By sensor

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 1

Tension control by magnetic clutch

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 2

Upper rewind is turret

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 3

Die cutting parts,Use magnetic cylinder and cutter

Sample:

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 4Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 5

Company Details:

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 6

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 7



Packing & Delivery:

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 8



FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

Rotary Die Cutting And Slitting Machine With Slitting For Blank Label 9
