| Place of Origin: | Zhejiang, China |
| Brand Name: | Yongshi |
| Certification: | CE Certificate |
| Price: | $12,000.00/sets >=1 sets |
|---|---|
| Packaging Details: | wooden case |
| Supply Ability: | 30 Set/Sets per Month |
| Condition: | New | Type: | Die-cutting Machine |
|---|---|---|---|
| Computerized: | Yes | Voltage: | 380V |
| Power: | 6kw | Dimension(L*W*H): | 3000*1300*1400mm |
| Weight: | 2000KG | Warranty: | 1 Year, 1 Year, 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Speed: | 300 Press/min |
| Computerised: | PLC | Drivers: | Servo Motor |
| Function: | Die Cutting,hole Punching,hot Stamping,laminating | Usage: | Label,sticker,trademark |
| Port: | Ningbo/shanghai | ||
| High Light: | 6kw Sticker Die Cutting Machine,380V Sticker Die Cutting Machine,Label Laser Die Cutter |
||
Production Description

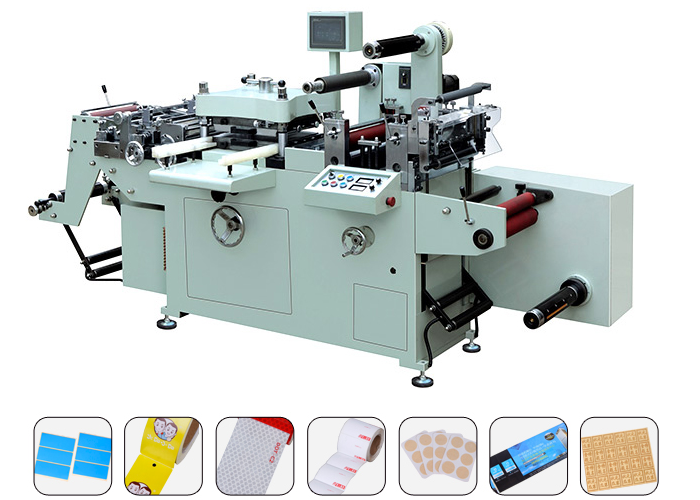

YS-350Z Automatic Medium Speed Label Die Cutting Machine
The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.
Technical parameters:
|
model |
YS-350Z |
|
Max. material width |
320mm |
|
Cutting area |
310*350mm |
|
Max. Cutting speed |
300 press/min |
|
Position accuracy |
±0.10mm |
|
Max. Length of meter |
45m/min |
|
Unwinding/rewinding diameter |
550mm |
|
Voltage |
380v (3 phase,380v) |
|
Total power |
6kw |
|
weight |
2000kg |
|
Dimension(L*W*H) |
3000*1300*1400 |
This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material, unwinding-die cutting-waste discharging-sheet cutting-rewinding all is completed in one turn, all are control by PLC control system.
