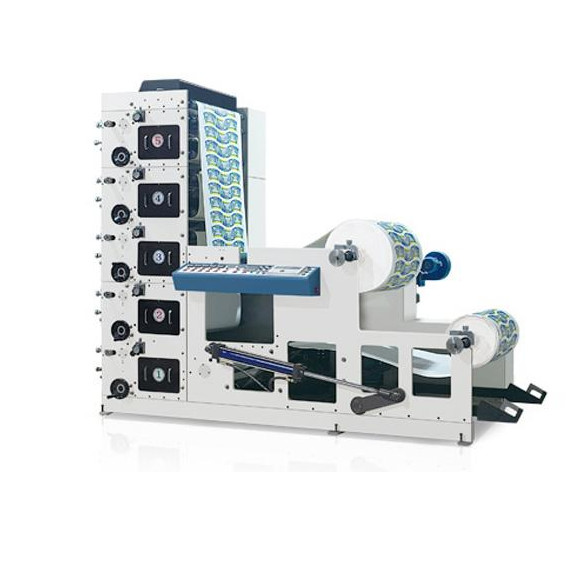

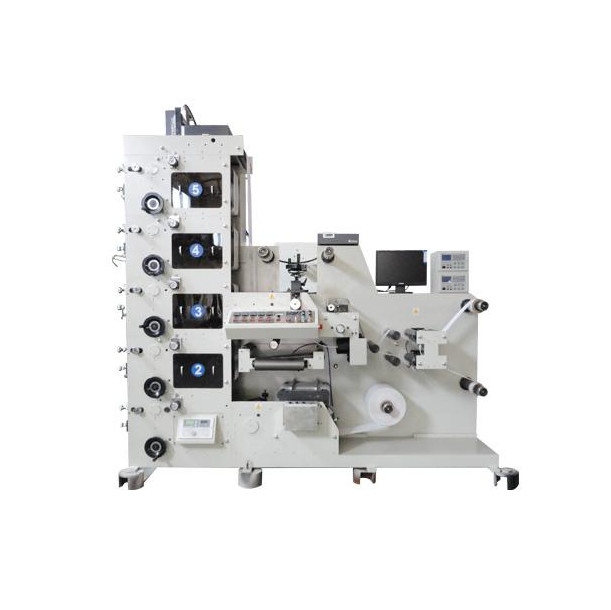

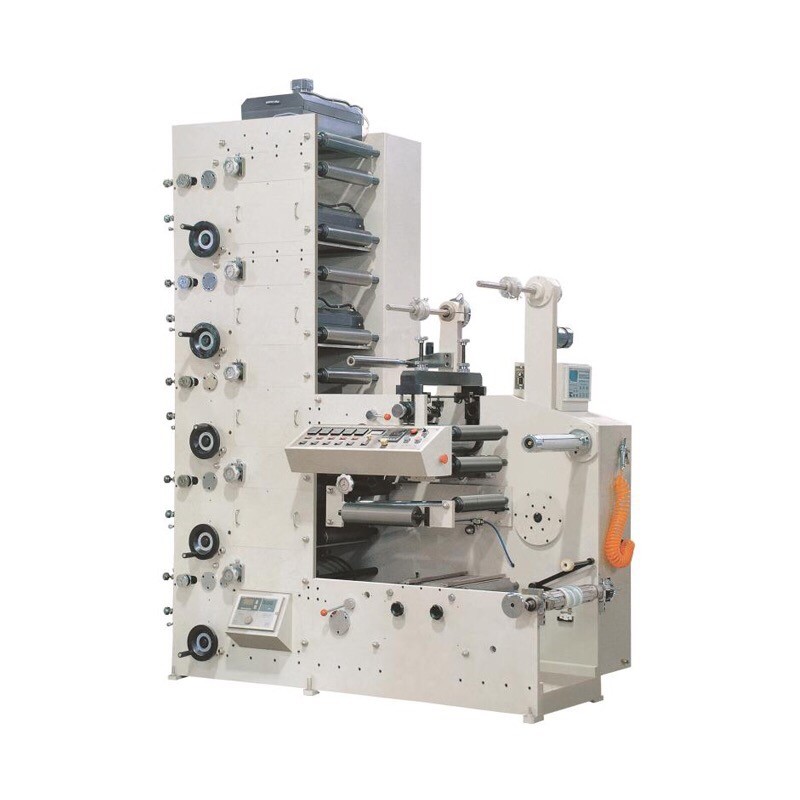

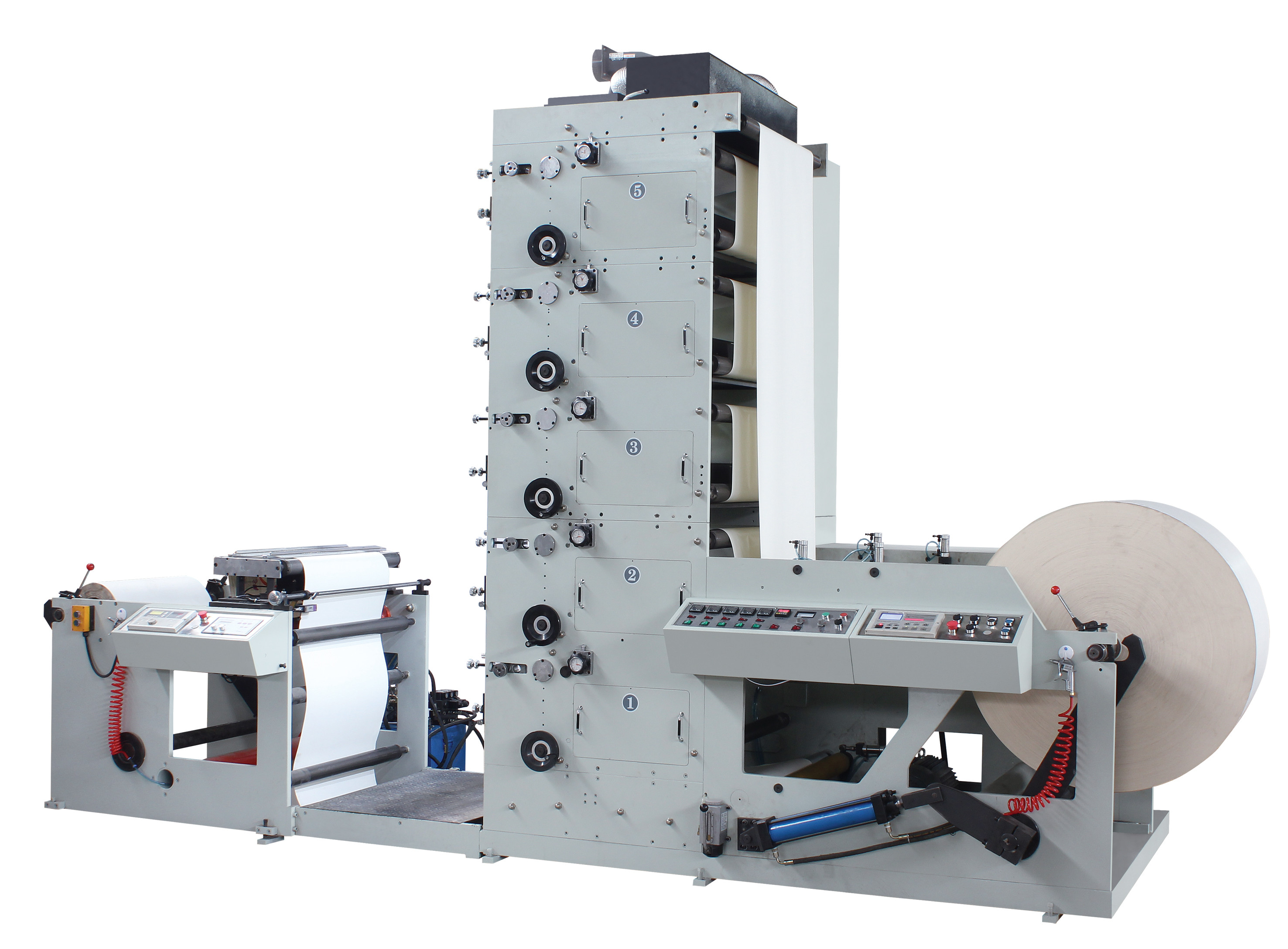

Automatic Label Flexo Printing Machine 5 Colors 380V

A Features

1, Ceramic anilox cylinder are adopted for ink transferring.

2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.

3, Each printing unit is adopted 360°printing plate-adjustment.

4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)

5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.

6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.

7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.

8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.

B Stand machine parts

3 x full sets of chrome plated precision  printing cylinders

1 x printing plate mounter.

1 x Toolbox.

Printing Repeat Length:

Standard : Z56 - Z112

Option 1 : Z65 - Z145

Option 2 : Z75 - Z170

C Suitable material

10 Micron Film To 400 Micron Board

Unsupported Film

Aluminium Foil

Tissue paper

Self adhesive paper

Vinyls/PVC

Carton weight board

D Tehnical Parameter

E Option

• Free standing unwind with roll lifter, roll diameter max 900mm.

• Corona Treater.

• UV Dryer

• Turn Bar

• Additional printing units.

• Cold foiling.

• Video web inspection
