| Place of Origin: | Zhejiang, China |
| Brand Name: | Yongshi |
| Certification: | CE Certificate |
| Price: | $12,500.00/sets >=1 sets |
|---|---|
| Packaging Details: | wooden case |
| Supply Ability: | 30 Set/Sets per Month |
| Condition: | New | Type: | Die-cutting Machine |
|---|---|---|---|
| Computerized: | Yes | Voltage: | 380V |
| Power: | 6kw | Dimension(L*W*H): | 3000*1300*1400mm |
| Weight: | 2000KG | Warranty: | 1 Year, 1 Year, 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Speed: | 300 Press/min |
| Computerised: | PLC | Drivers: | Servo Motor |
| Function: | Die Cutting,hole Punching,hot Stamping,laminating | Usage: | Label,sticker,trademark |
| Port: | Ningbo/shanghai | ||
| High Light: | Automatic Sticker Die Cutting Machine,2000KG Sticker Die Cutting Machine,380V Adhesive Label Printing Machine |
||

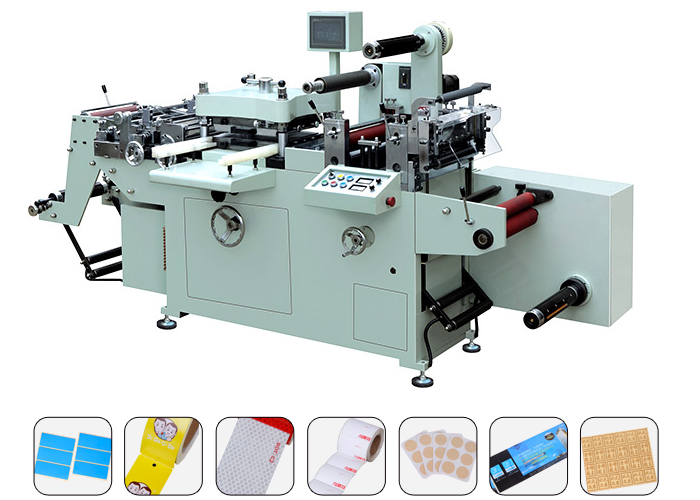

Extended functions: laminating-stamping-punching
Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding
The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.
Technical parameters:
|
model |
YS-350Z |
|
Max. Feeding width |
320mm |
|
Cutting area |
300*350mm |
|
Cutting speed |
300 times/min |
|
Position accuracy |
±0.10mm |
|
Power of main motor |
2.2kw |
|
Size(L*W*H) |
2750*1250*1400 |
|
Unwinding/rewinding diameter |
550mm |
|
Voltage |
380v |
|
Total power |
5kw |
|
weight |
1700kg |
