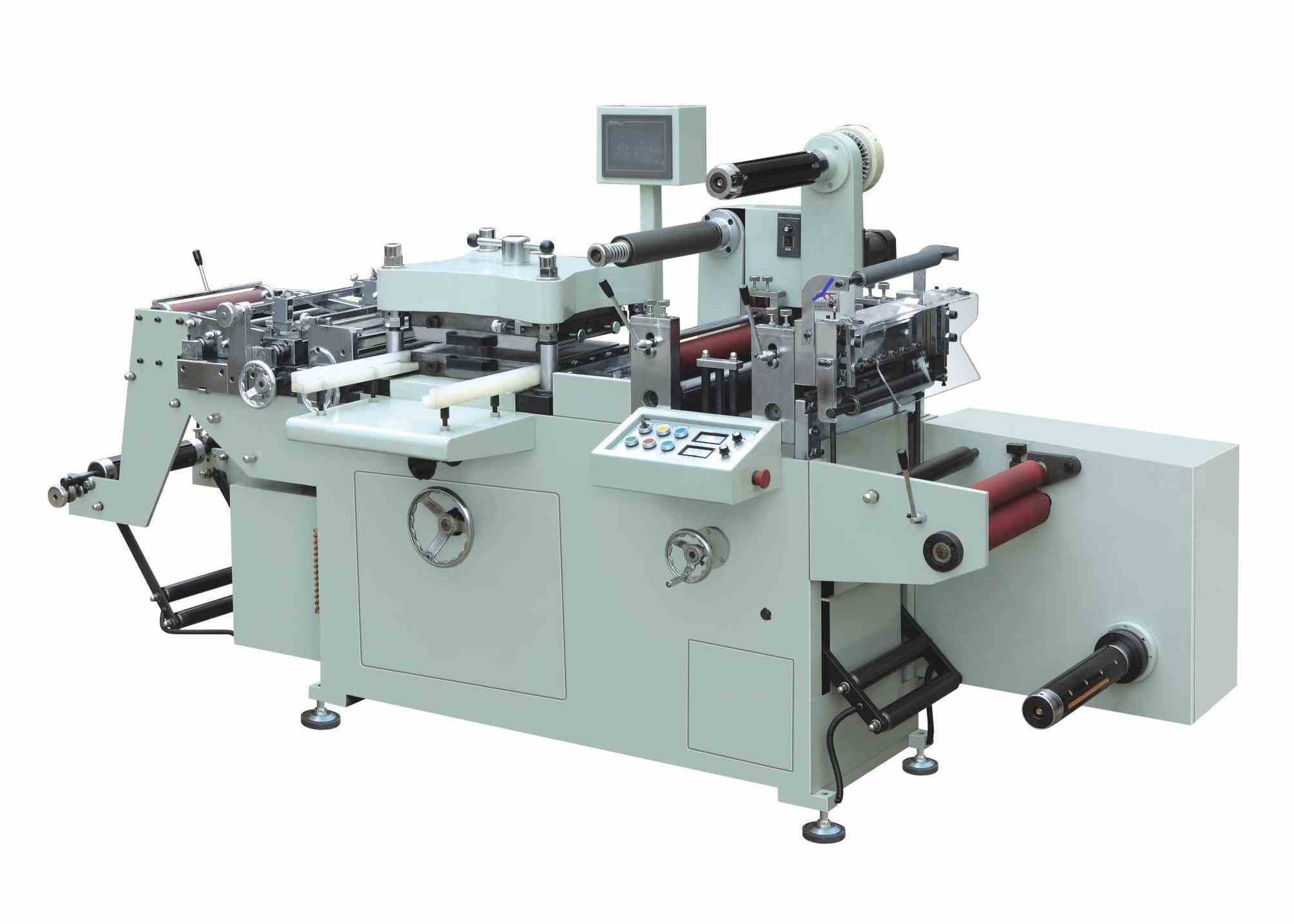

Roll To Roll Label Sticker Die Cutting Machine With 300 Sheet Cutter

$11,500.00 - $12,000.00/sets
Price
Roll To Roll Label Sticker Die Cutting Machine With 300 Sheet Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Die-cutting Machine
Computerized: Yes
Voltage: 380V
Power: 6kw
Dimension(L*W*H): 3000*1300*1400mm
Weight: 2000KG
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Speed: 300 Press/min,45m/min
Computerised: PLC
Drivers: Servo Motor
Function: Die Cutting,hole Punching,hot Stamping,laminating
Color: White
Model: YS-350Z Medium Speed
Port: Ningbo/shanghai
Highlight:

6kw Sticker Die Cutting Machine

,

380V Sticker Die Cutting Machine

,

PLC Roll To Roll Die Cutting Machine

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Yongshi
Certification: CE Certificate
Model Number: YS-350Z
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 30 Set/Sets per Month
Product Description

Production Description

YS-350Z Automatic Medium Speed Label Die Cutting Machine
The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.


Technical parameters:

model

YS-350Z

Max. material width

320mm

Cutting area

310*350mm

Max. Cutting speed

300 press/min

Position accuracy

±0.10mm

Max. Length of meter

45m/min

Unwinding/rewinding diameter

550mm

Voltage

380v (3 phase,380v)

Total power

6kw

weight

2000kg

Dimension(L*W*H)

3000*1300*1400


Roll To Roll Label Sticker Die Cutting Machine With 300 Sheet Cutter 0

Roll To Roll Label Sticker Die Cutting Machine With 300 Sheet Cutter 1  Roll To Roll Label Sticker Die Cutting Machine With 300 Sheet Cutter 2


Main Features

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material, unwinding-die cutting-waste discharging-sheet cutting-rewinding all is completed in one turn, all are control by PLC control system.
