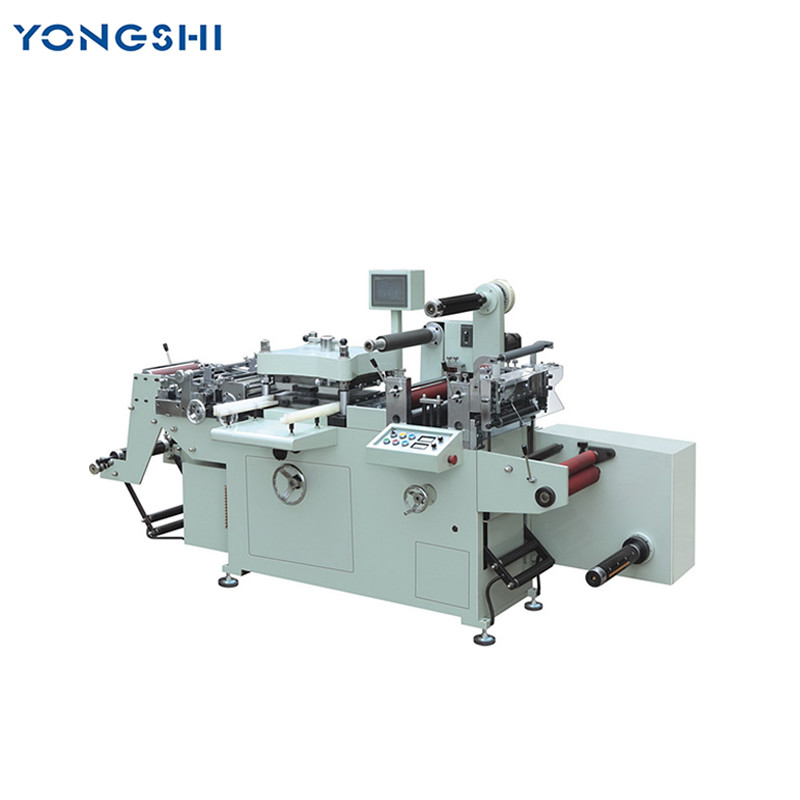

Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min

$12,000.00/sets >=1 sets
Price
Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Die-cutting Machine
Computerized: Yes
Voltage: 380V
Power: 6kw
Dimension(L*W*H): 3000*1300*1400mm
Weight: 2000KG
Warranty: 1 Year, 1 Year, 1 Year, 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Speed: 300 Press/min
Computerised: PLC
Drivers: Servo Motor
Function: Die Cutting,hoel Punching,hot Stamping,laminating
Usage: Label,sticker,trademark
Certificate: CE
Port: Ningbo/shanghai
Highlight:

Label Sticker Die Cutting Machine

,

300 press/min Sticker Die Cutting Machine

,

380V Automatic Roll Die Cutter

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: Yongshi
Certification: CE Certificate
Payment & Shipping Terms
Packaging Details: wooden case
Supply Ability: 50 Set/Sets per Month
Product Description

model

YS-350Z

Max. material width

320mm

Cutting area

310*350mm

Max. Cutting speed

300 press/min

Position accuracy

±0.10mm

Max. Length of meter

45m/min

Unwinding/rewinding diameter

550mm

Voltage

380v (3 phase,380v)

Total power

6kw

weight

2000kg

Dimension(L*W*H)

3000*1300*1400

Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 0Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 1Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 2Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 3Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 4Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 5Label Sticker Die Cutting Machine Automatic Roll Die Cutter 300 Press/Min 6
