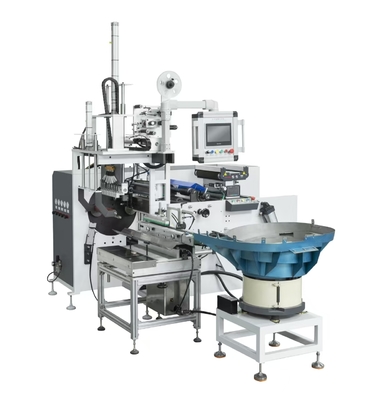

SR-350FQ Max Speed Is 220m/Min Fully Automatic Slitting Machine
This machine max speed is 220m/min, adopt 6pces of sero motor to control , with slitting , auto paper core loading, auto cutting ,auto labeling, auto rewinding functions, paper core without glue, no folding, with meter counter ,quantity counter.
Technical data
Max. Feeding width | 350mm | 450mm |
Max. speed | 220m/min | 220m/min |
Position accuracy | ±0.10mm | ±0.10mm |
Max.unwinder dia | 600mm | 600mm |
Max.rewinder dia | 140mm | 140mm |
Voltage | 220v,1phase | 220v,1phase |
Total power | 6kw | 8kw |
Weight | 1200kg | 1500kg |
Size(L*W*H) | 1750*2800*2400 | 1700*2900*2400 |
Details:

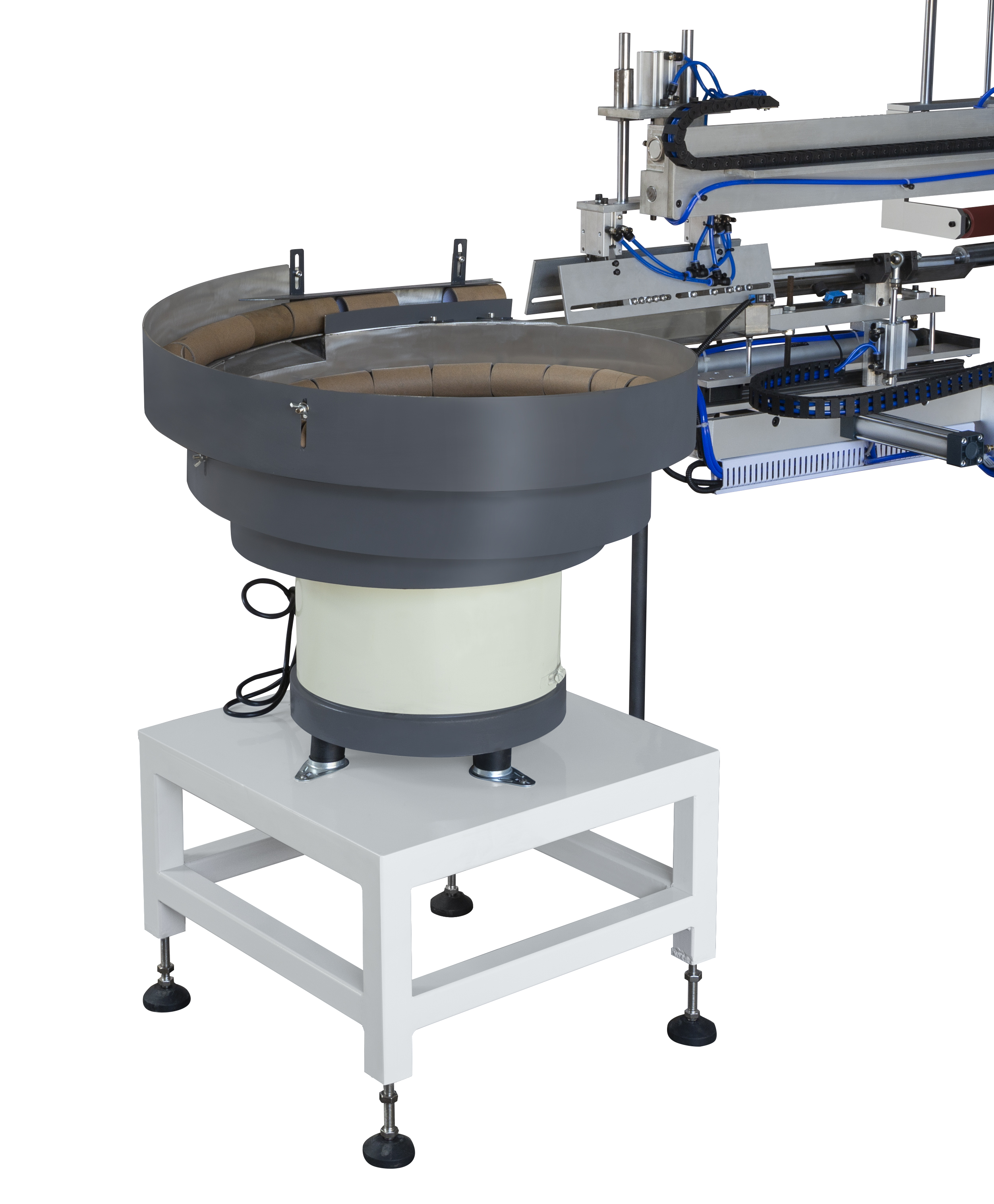

1. machine with one paper core feeder(used for 1inch and 1.5inch)
2. machine with 2 pces of 1inch air shaft, 2 pces of 1.5inch air shaft.
3. 8 pces of slitting knife.
4. with 2 pces of cutting blade.
company profile
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be brave aggressive pragmatic efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!
