Home /Products/Rotary Die Cutting Machine/Flexo Unit Intermittent Die Cutter Machine

Flexo Unit Intermittent Die Cutter Machine

1
MOQ
9000-95000USD
Price
Flexo Unit Intermittent Die Cutter Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max Effective Paper Width: 370MM
Max Unwinding Dia: 800mm
Max Rewindinng Dia: 800mm
Registration: Sensor
Die Cutting Speed: 120m/min
Accuracy Of Die Cut: +0.15mm
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE MACHIINE
Certification: CE
Model Number: SRQ-370
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

Flexo Unit Intermittent Die Cutter Machine



TECHNICAL SPECIFICATION:

Model ZMQ -370
Max effective paper width 370MM
Max unwinding dia 800mm
Max rewindinng dia 800mm
Registration Sensor
Die cutting speed 120m/min
Slitting speed 200m/min
Air supply 0.4-0.6pa
Heat temperature 0-200 degree
Accuracy of die cut +0.15mm



DEATILS DESCRIPTION

●unwinding
Description Note Quantity Brand Name
Servo driver 2KW 1 Panasonic -Japan
Web guide   1 BST----- Germany
●semi rotary & rotary flexo unit
Note
Description Note Quantity Brand Name
Front feeding servo motor 2KW 1 Panasonic-----Japan
Front feeding speed reducer 115Series 1 SHIMPO-----Japan
Swing link servo motor 4 KW 1 Panasonic-----Japan
Swing link speed link 115Series 1 SHIMPO-----Japan
UV light uv dryer   1 UVlight ----- Taiwan
Mark sensor R58E 1 Banner ---USA
Flexo print servo motor 2KW 1 Panasonic-----Japan
Flexo print speed reducer 115Series 1 SHIMPO-----Japan
Air cylinder     Airtac ----Taiwan
Bearing     NSK----Japan
●rewinding system
Description Note Quantity Brand Name
Upon side Rewinding shaft 2KW 1 Panasonic-----Japan
Down side rewinding shaft 2KW 1 Panasonic-----Japan
Waste collection tension control FL12B-1 1 Shengda----China
Waste collection magnetic powder FL12B-1 1 Shengda----China
Snowball-waste collection motor 750W 1 JSCC----China
Fan 750W
Bearing     NSK

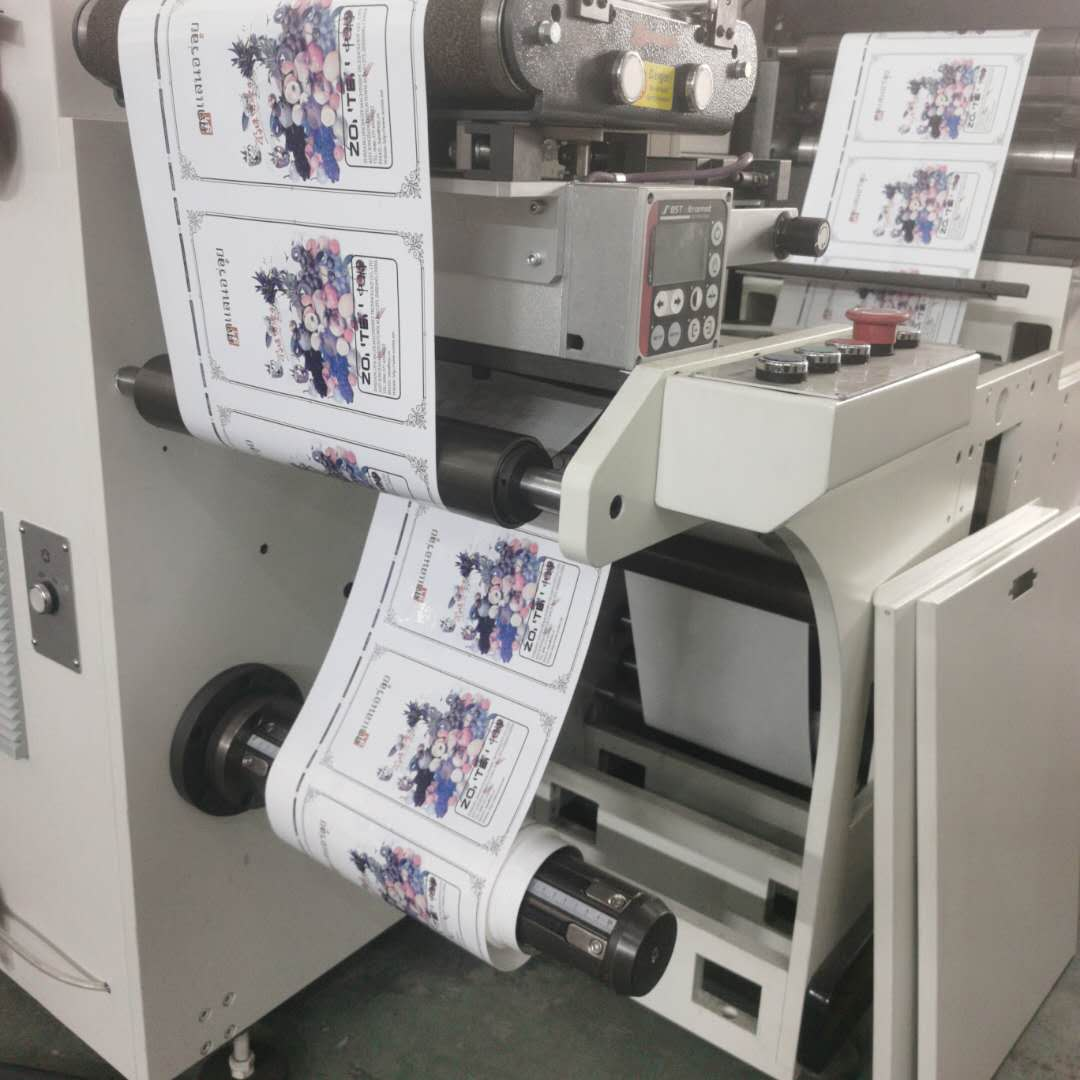

The photo is flexo unit+ intermittent die cutter+ slitting unit for reference

Flexo Unit Intermittent Die Cutter Machine 0

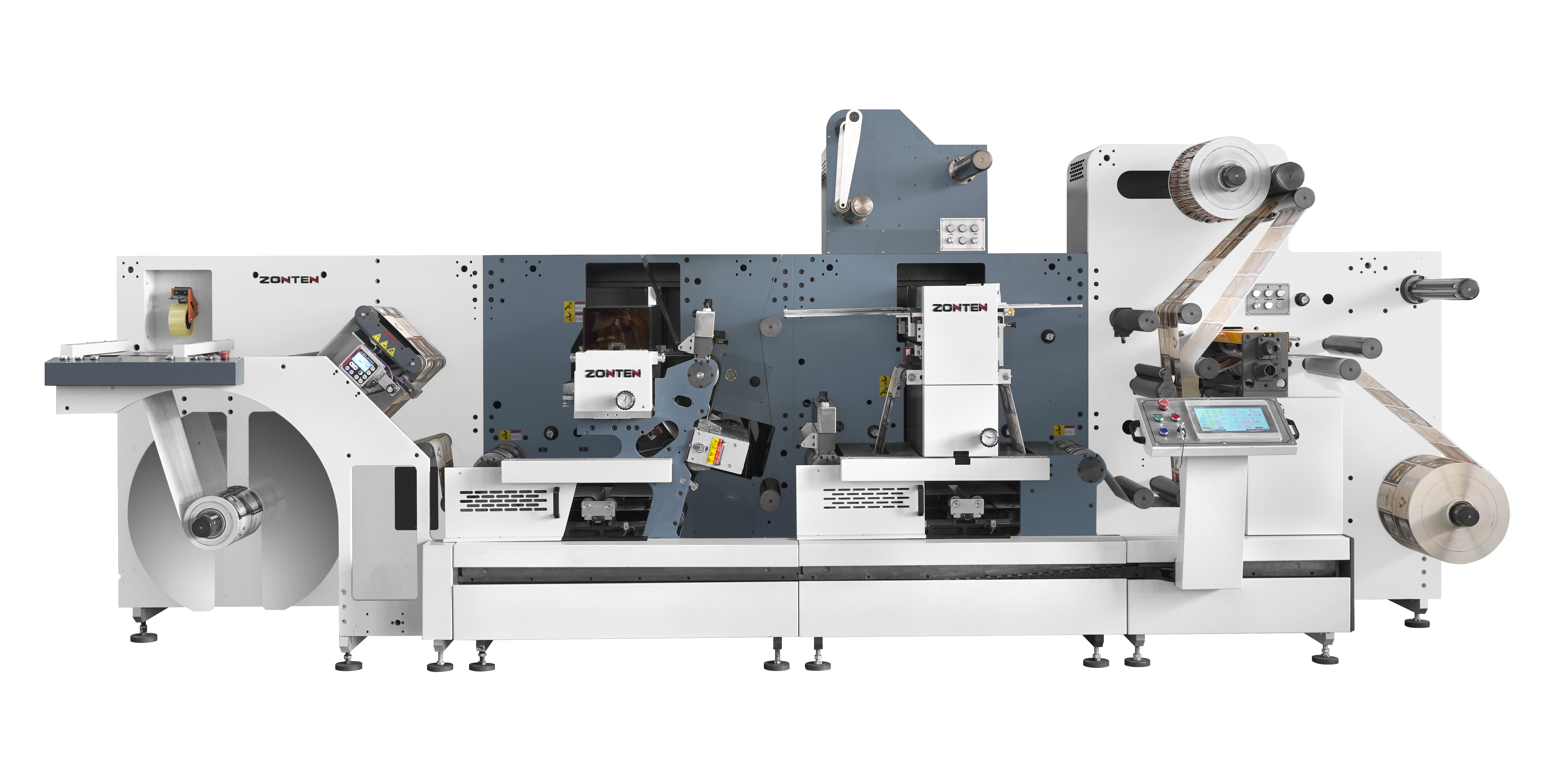

This photo is : corona treatment+ 2 unit intermittent flexo unit + intermittent cold foil + turn bar+ intermittent die cutter+ sheeter

Flexo Unit Intermittent Die Cutter Machine 1
