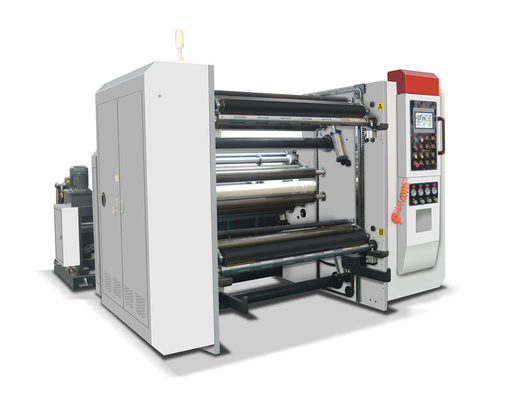

Acomputer high-speed slitting machine
Suitable for :
This machine suitable for a lot of paper,such as 30-400g/m2,paper&film laminated,PET/PVC etc best jumbo roll cutting machine.
Characteristic:
1, Machine use servo three motor synchronize control, auto tape tension,center and surface rewinding together;
2,Machine use frequency adjust speed, keep stable running when speed up;
3,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control etc function.
4,Feeding roll use air shaft use 3#(76mm paper tube core)

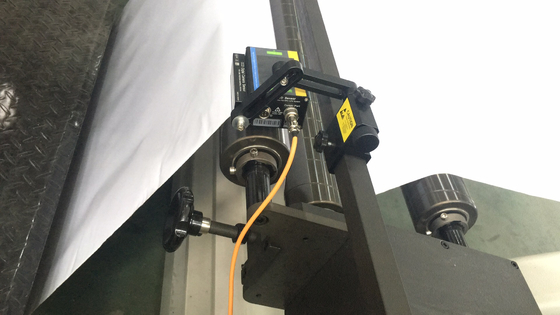

5,Rewinding use photocell control edge position control way

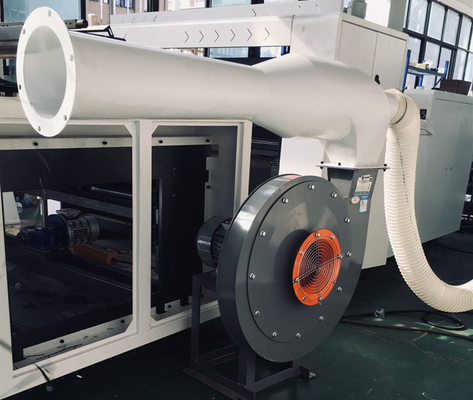

6,Circular knife slitting waste edge of roll, and it’s auto let out by fan
7,Automatic air shaft/ Hydraulic shaftness unwinding part
Unwinding Unit:
Model | 1600mm |
Slitting thickness |
20g/m2~500g/m2
|
Raw material Unwinding Diameter |
φ1600mm
|
Raw rewinding max.diameter |
φ1000mm
|
Slitting Max.Width |
20-1600mm
|
Rewinding air shaft diameter |
φ76mm/ 2pcs
|
Slitting Precision |
±0.2mm
|
Slitting Speed |
50-400m/min
|
Total Power | 26kw |
Machine Size |
4500×3200×1950mm
|
Machine Weight | 5500kg |
Machine cove color |
main white and black
|
Machine Configuration:
1.Unwinding :unwinging part use air shaft 3inch/choose Hydraulic shaftness
2.Main Engineer(Surface friction type):Rack use 40# high quality casting structure
1) Driver and drive mechanism:
2)Traction equipment:
3)Slitting equipment:round knife
3.Rewinding equipment:
Structure way: use two air shaft rewinding
(5)Rewinding Diameter Maximum:1000mm
(6)Two Rewinding Shaft use automatic motor type unloading device form 1set
4.:Control way
It’s electrical control box and power supply together on the machine 1set
5.Extra Equipment:(buyer responsible for it)
PLC system | Siemens Germany |
control screen | China Taiwan WeinView |
main motor | China shanghai danma servo 1set |
rewinding motor | China shanghai danma servo2sets |
inverter | China sinee 3台 |
rewinding air shaft | 3"air shaft 2 pcs |
unwinding parts | 3-6inch shaftness |
EPC | China |
PLC function | auto meter counter |
Electrical |
French,Schneider;China Chint
|
