Automatic Turret Type Slitting Machine

1
MOQ
1500-1700USD
Price
Automatic Turret Type Slitting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Accuracy Rate: ±0.10mm
Key Selling Points: Automatic
Position Accuracy: +-0.1mm
Application: Label Cutting
Slitting Speed: 120m/min
Plate Type: Flatbed Printer
Effective Width: 450mm
Machinery Test Report: Provided
Voltage: 220v
Main Motor Power: 1.5kw
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE MACHIINE
Certification: CE
Model Number: YS-350FII
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

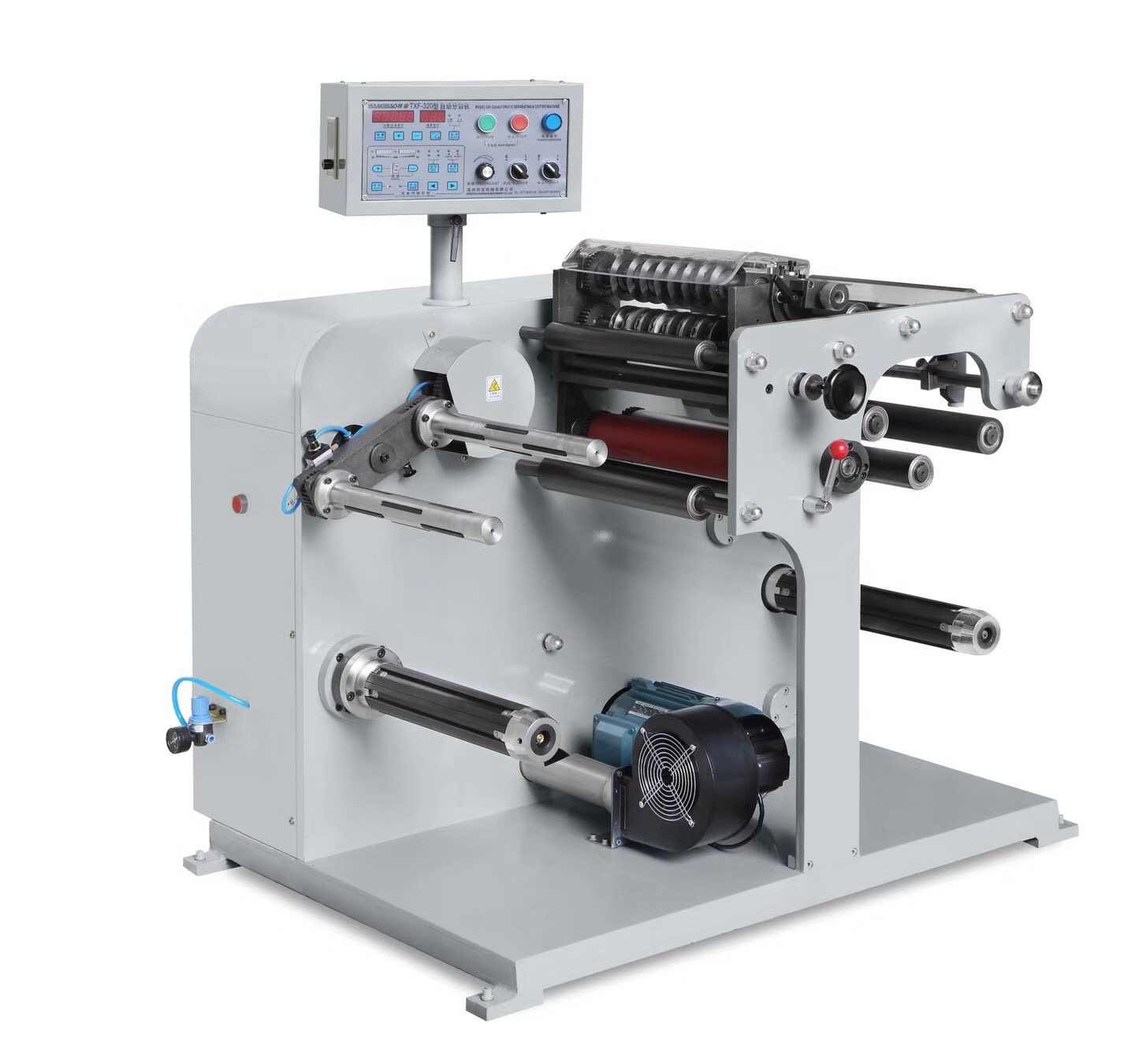

Automatic Turret Type Slitting Machine



Functional characteristics

YS-320FII is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.



Technical parameters:



Model YS-350FII
Slitting speed 120m/min
Max. Width 350mm
Max. Unwinding diameter 500mm
Max. rewinding diameter 500mm
Min. Slitting width 16mm
Max. Slitting width 340mm
Accuracy rate ±0.10mm
Voltage 220v
Main motor power 1.5kw
weight 600kg
Dimension 1200*800*1280mm





Features:

  • Turret shaft, and easy to change different size of rewind shaft
  • All shafts automatic inflate air
  • This standard machine with 3 magnetic tension controllers.
  • Machine with 2 sets of 1inch shafts
