Features

Specifications

Product Name: High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince With F

Application: Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works , Advertising Company

Warrantly: 1year

Max Unwinding Dia: 800mm

Die Cutting Speed: 120m/min

Feature: SR-370 Is The Newly Developed Equipment For Die Cutting And Slitting. It Adopt Servo-control System To Achieve Optimization Control Of Machine Which Assure High Accuracy And The Stability Of The Die Cutter. Automatic Paper Feeding, Web Guider, Lamination,

Slitting Speed: 200m/min

Air Supply: 0.4-0.6pa

Basic Infomation

Place of Origin: Zhejiang,China

Brand Name: Sunrise

Certification: CE

Model Number: SR-370 2flexo

Payment & Shipping Terms

Packaging Details: Exported Wooden Case

Delivery Time: 15working days

Supply Ability: 30 Set/Sets per Month

Gallery

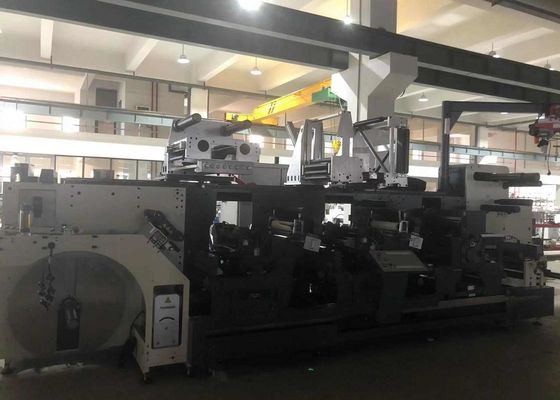

High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo Unit

Product Description

High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo

Name: High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo Unit
Brand: Wenzhou Sunrise Machinery Co.,Ltd
SKU: SR-370 2flexo
Price: 105,000.00 USD
Availability: InStock

Product Descriptions:

SR-370 2flexo is the newly developed equipment for die cutting and slitting.
it adopt servo-control system to achieve optimization control of machine which assure high accuracy and the stability of the die cutter.
automatic paper feeding, web guider, lamination, uv flexo coating, die cutting, slitting can be completed in one pass.
the machine has many advantages such as smaller floor space, lower noise, high speed, etc.
SR-370 2flexo is an ideal option for die cutting and shaping in label printing factory, electronic industry and viscose products industry.

Main Technical Parameters:

Model	ZMQ -370
Max effective paper width	370MM
Max unwinding dia	800mm
Max rewindinng dia	800mm
Registration	Sensor
Die cutting speed	120m/min
Slitting speed	200m/min
Air supply	0.4-0.6pa
Heat temperature	0-200 degree
Accuracy of die cut	+0.15mm

DEATILS DESCRIPTION:

●unwinding
Description	Note	Quantity	Brand Name
Servo driver	2KW	1	Panasonic -Japan
Web guide		1	BST----- Germany
●semi rotary & rotary flexo unit
Note
Description	Note	Quantity	Brand Name
Front feeding servo motor	2KW	1	Panasonic-----Japan
Front feeding speed reducer	115Series	1	SHIMPO-----Japan
Swing link servo motor	4 KW	1	Panasonic-----Japan
Swing link speed link	115Series	1	SHIMPO-----Japan
UV light uv dryer		1	UVlight ----- Taiwan
Mark sensor	R58E	1	Banner ---USA
Flexo print servo motor	2KW	1	Panasonic-----Japan
Flexo print speed reducer	115Series	1	SHIMPO-----Japan
Air cylinder			Airtac ----Taiwan
Bearing			NSK----Japan
●rewinding system
Description	Note	Quantity	Brand Name
Upon side Rewinding shaft	2KW	1	Panasonic-----Japan
Down side rewinding shaft	2KW	1	Panasonic-----Japan
Waste collection tension control	FL12B-1	1	Shengda----China
Waste collection magnetic powder	FL12B-1	1	Shengda----China
Snowball-waste collection motor	750W	1	JSCC----China
Fan	750W
Bearing			NSK

Machine details:

BST BRAND WEB GUIDE CONTROL WITH THE SENSOR TO GUARANTEE PAPER STRAIGHT FEEDING

UNWINDING DIAMETER IN 700MM

COLORFUL TRACKING SENSOR FOR REGISTERATION CUTTING

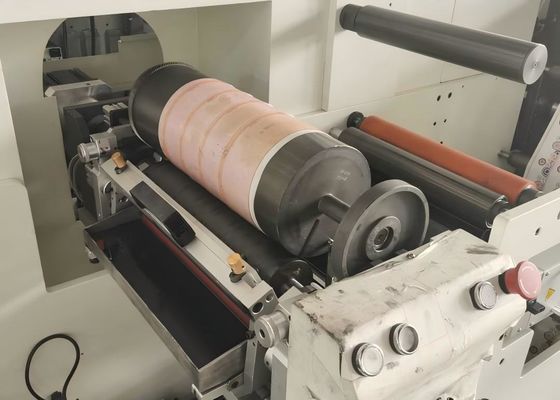

SEMI ROTARY FLEXO UNIT IN ONE PRINTING CYLINDER , 400 LINES ANLOIX ROLLER

WITH 3 SERVO DRIVER PANASONIC CONTROL

SEMI ROTARY DIE CUTTING STATION IN 152 Z

WITH 3 SERVO DRIVER PANASONIC CONTROL

PRESSURE WATACH CONTROL THE DIE CUTTER PRESSURE

REAL TIME INSPECTING TO PROTECT THE MAGNETIC KNIFE

SLITTING DEVICE

SLIDE TOUCH SCREEN SHOW ENGLISH /CHINESE

Packing & Delivery:

High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo Unit 8

Company Details:

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo Unit 11

High Speed Auto Sticker Flat Bed Hot Foil Stamping Semi Rotary Die Cutting Slitting Machince with Flexo Unit 12
