High Speed Slitting And Rewinding Machine

1
MOQ
23000-25000 USD
Price
High Speed Slitting And Rewinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model: YS-350FG
Max. Slitting Speed: 350 M/min
Max Web Width: 350mm
Min. Slitting Width: 16mm
Cutter Installed: 8 Sets
Air Supply: 0.8mpa
Weight: 1200kg
Dimension(L*W*H): 1850*1200*1300
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: SUNRISE MACHIINE
Certification: CE
Model Number: YS-350FG
Payment & Shipping Terms
Packaging Details: exported wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Product Description

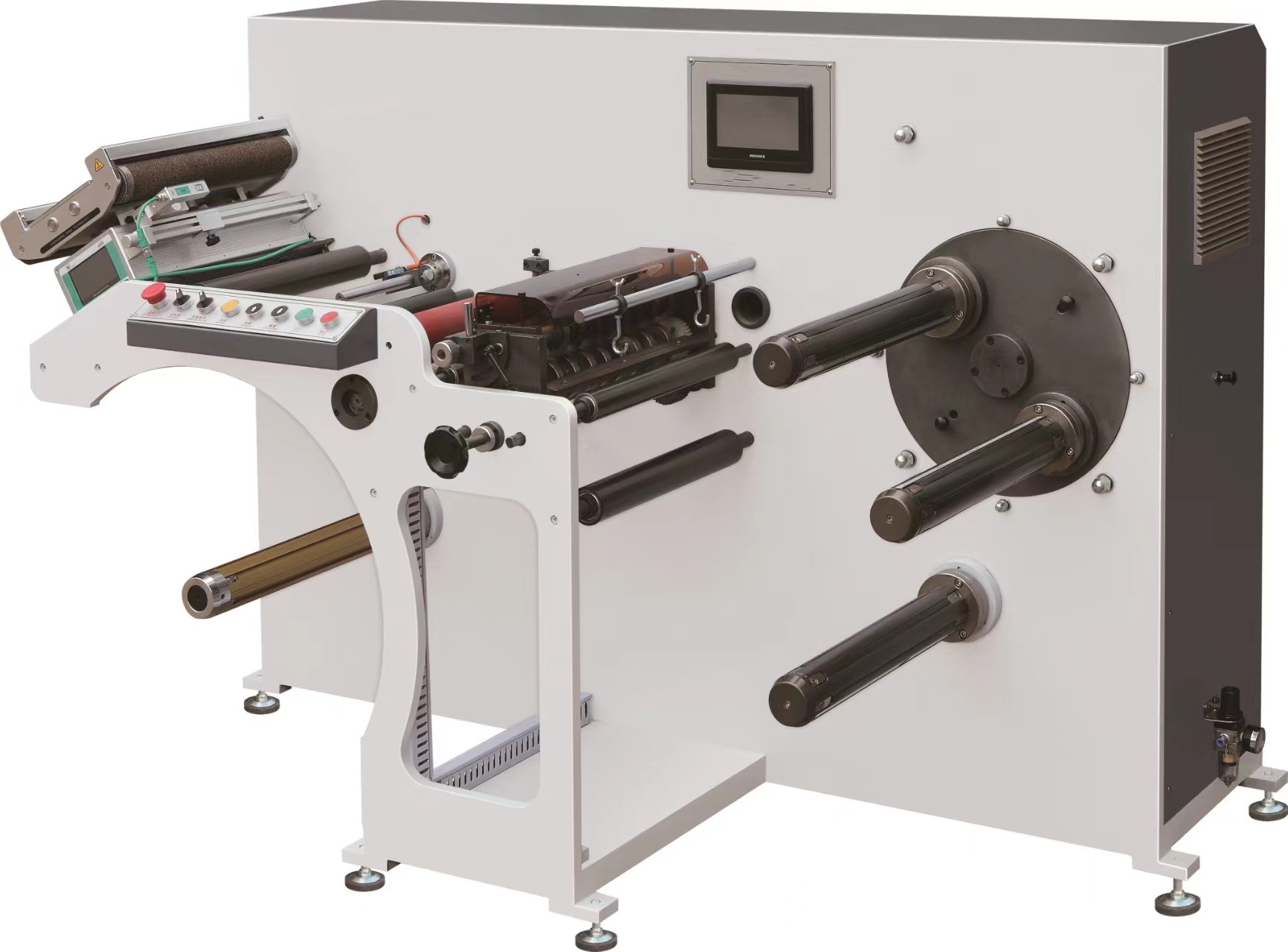

High Speed Slitting And Rewinding Machine

product introduction

One researched new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no material no working etc.



Performance and characteristics

1. Web guide control by auto ultrasonic



2. Rewind is turret type, auto rotate.



3. With full servo motor(4 servo motor)



4. Sensor use germany sick brand, it can meter counter and quantity counter.



5. with PLC, touch screen control system





Technical Data

model YS-350FG YS-450FG
Max. Slitting speed 350 m/min
Max web width 350mm 450mm
Min. Slitting width 16mm
Cutter installed 8 sets
Max. Unwinding Dia 700mm
Max. Rewinding Dia

500mm


Air supply 0.8mpa
weight 1200kg
Dimension(L*W*H) 1850*1200*1300
