Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine

1
MOQ
Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Thermal Paper Slitting And Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine
Application: Slitting Thermal Paper,bond Paper, Cash Register Paper, Fax Paper,POS Paper,ATM Paper, And Other Small Ribbon Roll
Warrantly: 1year
Weight: 1000kgs
Voltage: 3 Phase 380V 50HZ
Max. Parent Web Width: 860mm
Unwinding Shaft: 3” Pneumatic Air Expanding Shaft
Max. Rewinding Dia: 150mm
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Sunrise
Certification: CE
Model Number: SR-900
Payment & Shipping Terms
Packaging Details: Exported Wooden Case
Delivery Time: 15working days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets per Month
Product Description

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine

Product Descriptions:

Main Configurations
  •  Equipped with Panasonic PLC and Weinview touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.
  • Equipped with Auto Tension Control System for unwinding tension.
  • With meter counter. Got to the setup data, the machine stops and alarms.
  • It adopts Synchronic Belt to avoid the over lap problem.
  • It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel. Frequency inverter motor: 2.2Kw.
  • All transmission rollers have been dynamic/static balance treated.
  • Equipped with emergency switch.
  • All the electric appliances has been gained the CE certificate.
Unwinding Section
  • 3” air expanding shaft.
  • Equipped with automatic pneumatic lift-up loading system for heavy material roll loading.
  • Equipped with 10 Kg/ m2 automatic braking device x 1 to material feeding tension control.
Unwinding Tension Control
  • Equipped with automatic tension controller(diameter-calculating type) to gain a constant tension.
  • The unwind core size, and initial unwind diameter only needs to be preset on the touch screen, the PLC controls it automatically. Easy Operation.
Auto Tucker
  • It adopts Auto Tucker to tuck in the paper to cores automatically. No need paste in the tape. Easy operating and process the efficiency.
Red Line
  • Set up the red line length in the touch screen. For example, 1-2 meter, when the rewinding meter reach 1 meter,it will be in the red line automatically.Also as customer requirement.
Rewinding Section
  • 0.5” rewinding shafts are all available in this machine, we can also supply as request.
Trimmed Waste Edge
  • Waste edge trim device is included in the slitting device. Each side of edge is used for trimming the waste edge.
  • Equipped with air blow for waste material edge trimmer



Main Technical Parameters:

Model Type SR-900
Max. Parent Web Width 860mm
Max. Unwind Dia.: 1000mm
Max. Rewinding Dia.: 150mm
Max. Speed: 150m/min
Unwinding Shaft: 3” Pneumatic Air Expanding Shaft
Weight: 1000kg
Voltage: 3 Phase 380V 50HZ
Rewinding Shaft in Diameter 0.5'' ,Coreless(8mm)
Overall Dimensions: 2050 x 1600 x 1500mm

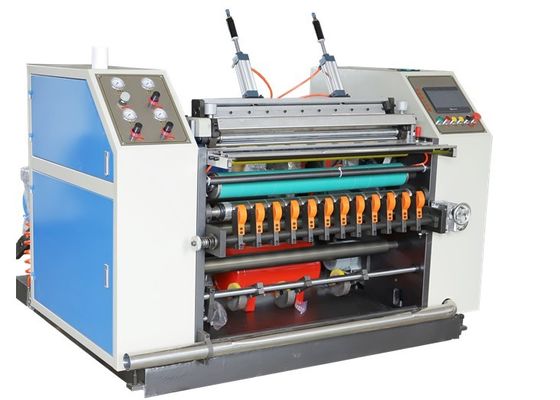

Machine Detail:

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 0

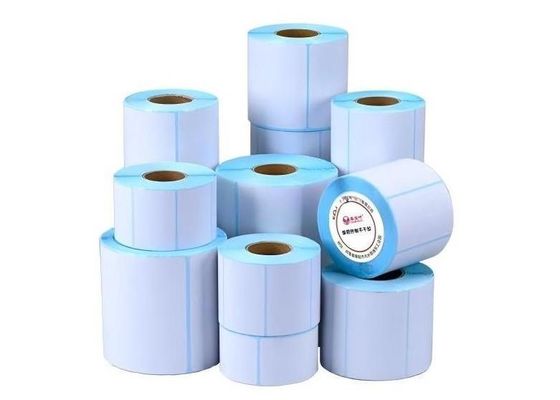

Finished Products:

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 1Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 2

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 3



Packing & Delivery:



Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 4Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 5

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 6

Company Details:

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 7

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 8

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 9

Automatic Thermal Paper Slitting and Rewinding Machine Cash Register Paper Roll Slitting Rewinder Machine 10

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
