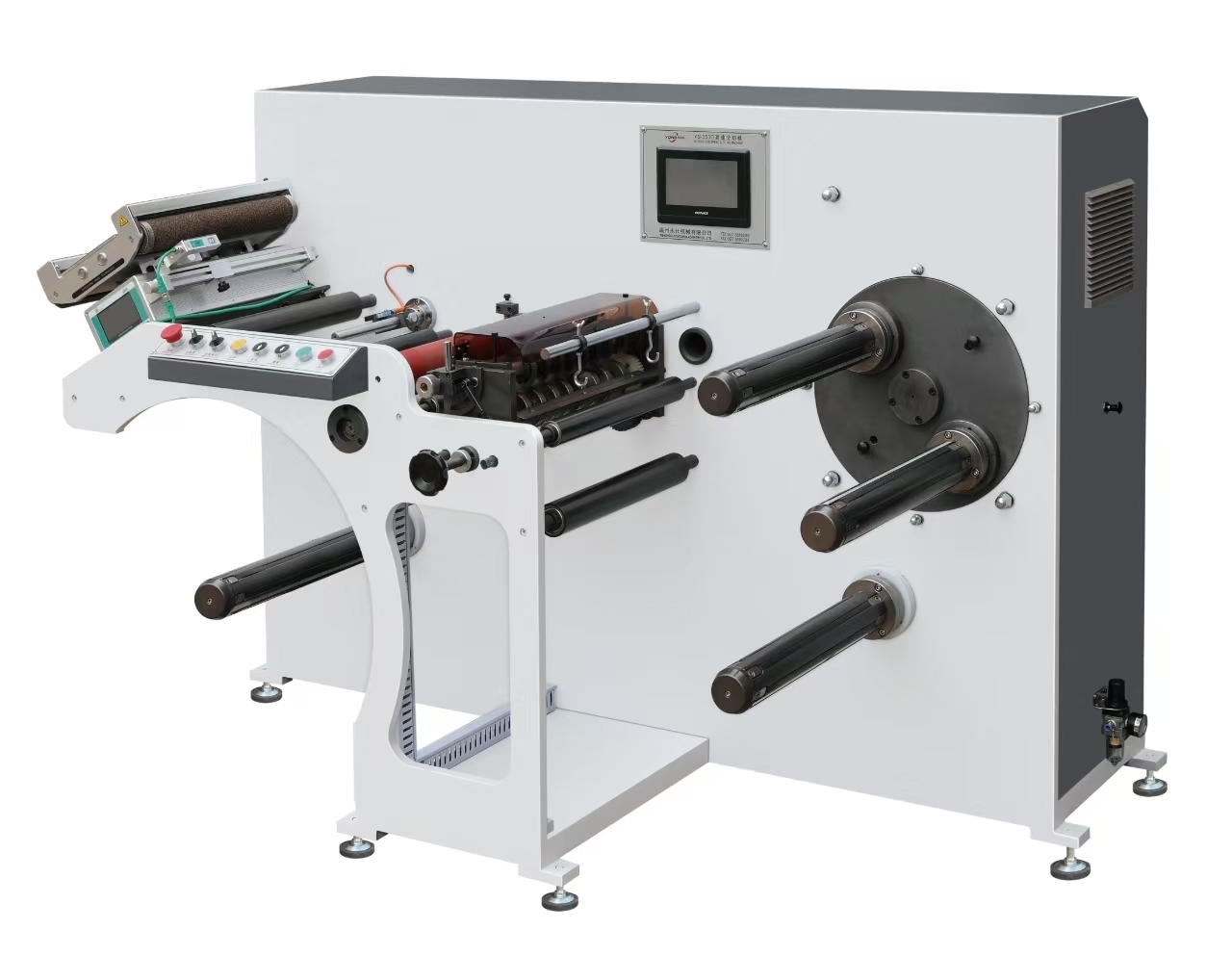

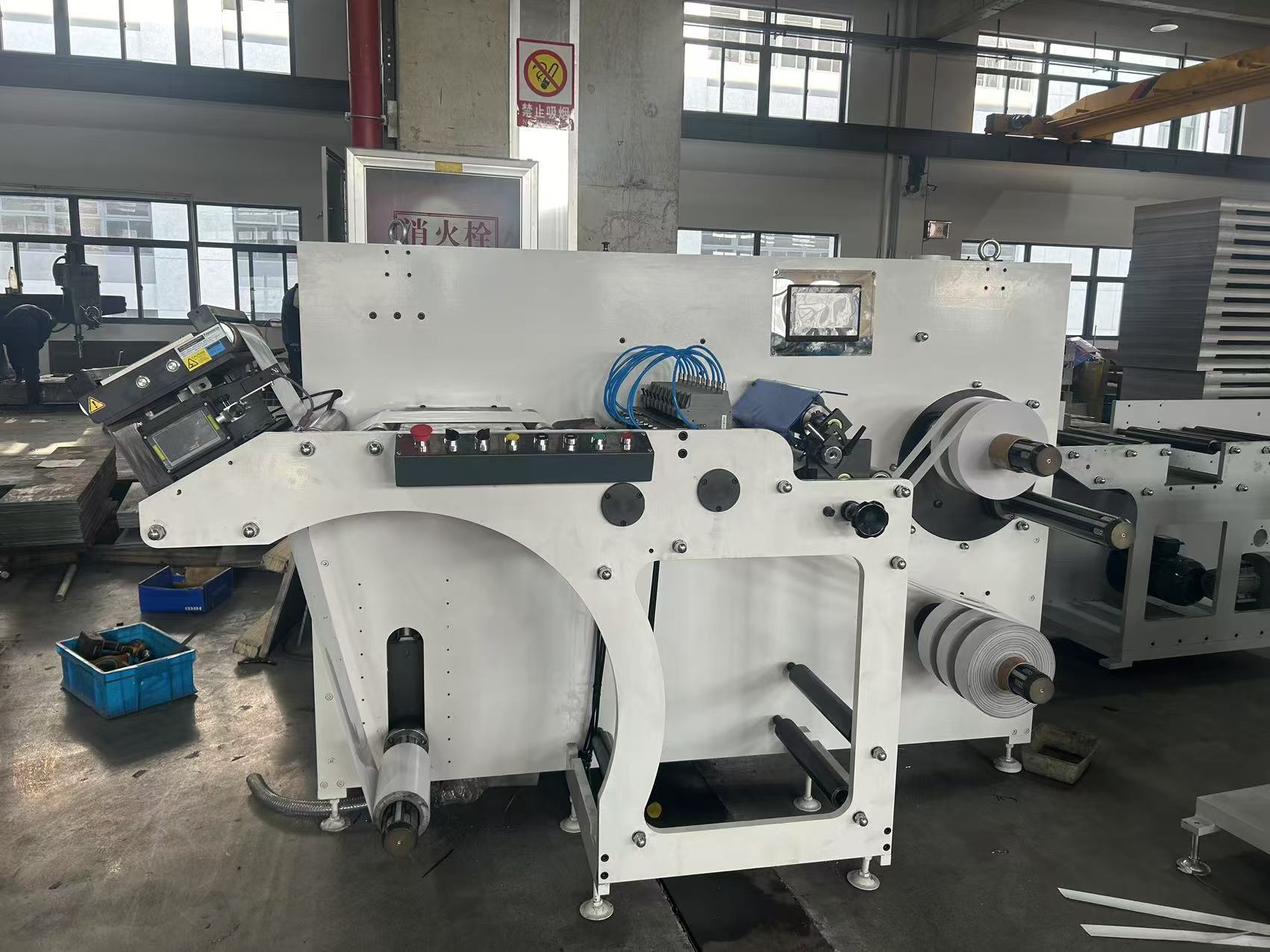

SR-350FG High Speed Slitting And Rewinding Machine
product introduction
One researched new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no material no working etc.
Performance and characteristics
1. Web guide control by auto ultrasonic
2. Rewind is turret type, auto rotate.
3. With full servo motor(4 servo motor)
4. Sensor use germany sick brand, it can meter counter and quantity counter.
5. with PLC, touch screen control system
model | SR-350FG |
Max. Slitting speed | 350 m/min |
Max web width | 350mm |
Min. Slitting width | 16mm |
Cutter installed | 8 sets |
Max. Unwinding Dia | 700mm |
Max. Rewinding Dia |
500mm
|
Air supply | 0.8mpa |
weight | 1200kg |
Dimension(L*W*H) | 1850*1200*1300 |
Main Parts List:
NO. | Parts Name | Brand |
1 | Servo driver | inovance |
2 | Counting sensor | Germany--Sick |
3 | Servo Motor | inovance |
4 | Proximity Switch | Germany--Leuze |
5 | Relay | French--Schneider |
6 | Buttons | French--Schneider |
7 | A.C.Contactor | French--Schneider |
8 | Touching-screen | inovance |
